ENMX09 - CUTTER BODIES

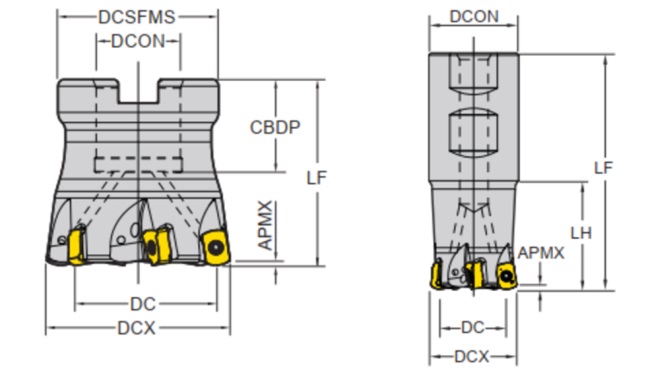

EDP Designation Connection Type Cutter Dia. Cutter Dia. Insert Count Connection Size Length/Height Clearance Length Backend Dia. Max. Axial Depth
TYPE DCX DC CICT DCON LF LH DCSFMS APMX
17000745 EHF - ENMX09 - D25Z2C25 - L150 Cylindrical
17000777 EHF - ENMX09 - D100Z2W100 - L550I Weldon 1" .606" 2 1" 5-1/2" 2.50 - 0.059"
17001284 EHF - ENMX09 - D100Z2W100 - L800I 1" .606" 2 1" 8" 2.50 -
17000778 EHF - ENMX09 - D125Z3W125 - L600I 1-1/4" .856" 3 1-1/4" 6" 3.00 -
17001285 EHF - ENMX09 - D125Z3W125 - L1000I 1-1/4" .856" 3 1-1/4" 10" 3.00 -
17000779 EHF - ENMX09 - D150Z4W125 - L600I 1-1/2" 1.106" 4 1-1/4" 6" 1.50 -
17001286 EHF - ENMX09 - D150Z4W125 - L1000I 1-1/2" 1.106" 4 1-1/4" 10" 1.50 -
17000780 FHF - ENMX09 - D200Z5S075I Shellmill 2" 1.606" 5 3/4" 1.969 - 1.75
17000781 FHF - ENMX09 - D250Z6S075I 2-1/2" 2.106" 6 3/4" 1.969 - 2.20
17000782 FHF - ENMX09 - D300Z8S100I 3" 2.606" 8 1" 2.480 - 2.20
17000783 FHF - ENMX09 - D400Z10S125I 4" 3.606" 10 1-1/4" 2.480 - 3.00
17000784 FHF - ENMX09 - D600Z14S200I 6" 5.606" 14 2" 2.480 - 4.70
17000752 FHF - ENMX09 - D50Z5S22
17000755 FHF - ENMX09 - D80Z8S27
17000882 FHF - ENMX09 - D500Z12S150I
17000854 MHF - ENMX09 - D125Z3M16I Modular
17000856 MHF - ENMX09 - D150Z4M16I
