Milling Home >

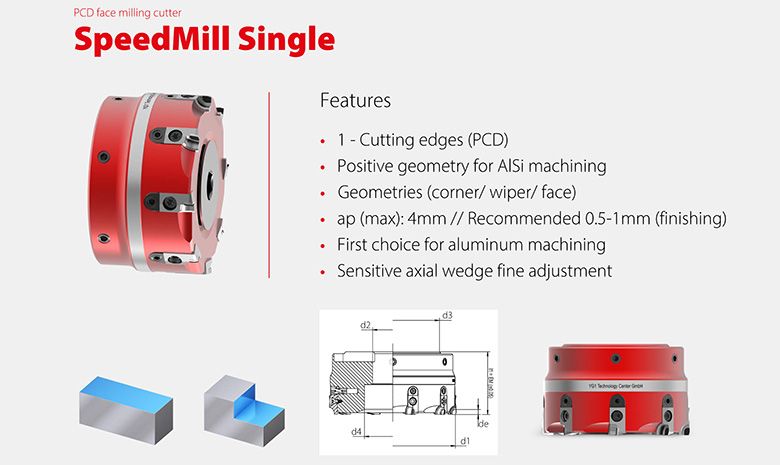

SINGLE SIDED CARTRIDGE - CUTTER BODIES

INCH

d1 EDP-No. Main body d2 d3 l1 max. ap Tooth kg max. RPM
2" YT5005000 Steel 0.75" 1.92" 2" 3 6 0.6 25000
2.5" YT5005001 Aluminum 1" 2.44" 2" 3 8 2 25000
3" YT5005002 Aluminum 1" 2.44" 2" 3 8 0.75 30000
4" YT5005003 Aluminum 1.25" 2.87" 2" 3 10 1.15 26000
5" YT5005004 Aluminum 1.5" 3.81" 2.5" 3 12 2.15 23000
6" YT5005005 Aluminum 1.5" 3.81" 2.5" 3 12 2.5 20000

METRIC

d1 EDP-No. Main body d2 d3 l1 max. ap Tooth kg max. RPM
50 YT5004653 Steel 16 49 50 3 6 0.6 25000
63 YT5003677 Aluminum 22 49 50 3 8 2 25000
80 YT5003502 Aluminum 27 58 50 3 8 0.75 30000
100 YT5004652 Aluminum 32 76 50 3 10 1.15 26000
125 YT5004875 Aluminum 40 89 63 3 12 2.15 23000
160 YT5003453 Aluminum 40 89 63 3 12 2.5 20000
