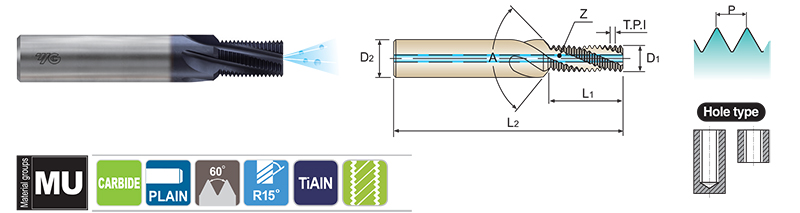

THREAD MILLS CARBIDE UN TIALN COATED COOLANT W/ CHAMFER - L427E series

SIZE Pitch EDP No. Cutter Diameter Shank Diameter Thread Length Overall Length Angle No. of Flute
T.P.I TiAlN D1 D2 L1 L2 A Z
1/4 28 L427E420 0.205 0.312 0.500 2.500 90° 3
3/8 24 L427E500 0.325 0.500 0.750 3.000 90° 4
1/4 20 L427E400 0.190 0.312 0.500 2.500 90° 3
1/2 20 L427E580 0.435 0.625 1.000 3.500 90° 4
5/16 18 L427E440 0.240 0.375 0.625 2.500 90° 3
3/8 16 L427E480 0.290 0.375 0.750 3.000 90° 4
3/4 16 L427E720 0.655 0.750 1.500 4.000 90° 5
7/16 14 L427E520 0.335 0.500 0.750 3.500 90° 4
1/2 13 L427E560 0.385 0.500 1.000 3.500 90° 4
9/16 12 L427E600 0.455 0.625 1.200 3.500 90° 4
5/8 11 L427E640 0.515 0.625 1.250 3.500 90° 4
3/4 10 L427E700 0.630 0.750 1.500 4.000 90° 5
