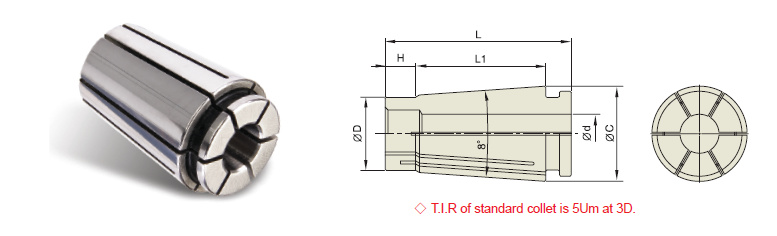

SK COLLET - SKC - INCH

EDP No. TYPE MODEL No. CLAMPING RANGE (d)
3060108A SKC6 SKC6 - 1/8A 0.125
3060316A SKC6 - 3/16A 0.187
3100108A SKC10 SKC10 - 1/8A 0.125
3100316A SKC10 - 3/16A 0.187
3100104A SKC10 - 1/4A 0.250
3100516A SKC10 - 5/16A 0.312
3100308A SKC10 - 3/8A 0.375
3160108A SKC16 SKC16 - 1/8A 0.125
3160316A SKC16 - 3/16A 0.187
3160104A SKC16 - 1/4A 0.250
3160516A SKC16 - 5/16A 0.312
3160308A SKC16 - 3/8A 0.375
3160716A SKC16 - 7/16A 0.437
3160102A SKC16 - 1/2A 0.500
3160916A SKC16 - 9/16A 0.562
3160508A SKC16 - 5/8A 0.625
3250316A SKC25 SKC25 - 3/16A 0.187
3250104A SKC25 - 1/4A 0.250
3250516A SKC25 - 5/16A 0.312
3250308A SKC25 - 3/8A 0.375
3250716A SKC25 - 7/16A 0.437
3250102A SKC25 - 1/2A 0.500
3250508A SKC25 - 5/8A 0.625
3250304A SKC25 - 3/4A 0.750
