Rotary Tooling Home > Rotary Tooling > SK SLIM CHUCK

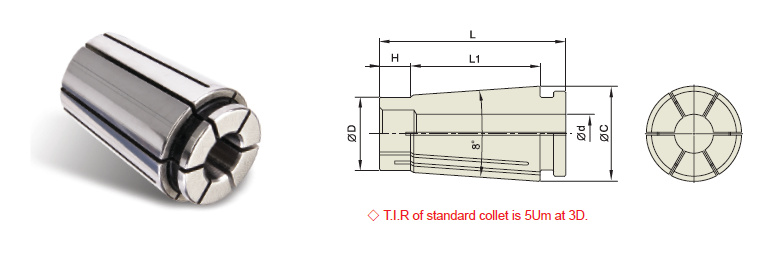

SK COLLET - SKC - METRIC

EDP No. TYPE MODEL No. CLAMPING RANGE (d)
306010 SKC6 SKC6 - 1 0.9 - 1.0
306015 SKC6 - 1.5 1.3 - 1.5
306020 SKC6 - 2 1.8 - 2.0
306025 SKC6 - 2.5 2.3 - 2.5
306030 SKC6 - 3 2.8 - 3.0
306035 SKC6 - 3.5 3.0 - 3.5
306040 SKC6 - 4 3.5 - 4.0
306045 SKC6 - 4.5 4.0 - 4.5
306050 SKC6 - 5 4.5 - 5.0
306055 SKC6 - 5.5 5.0 - 5.5
306060 SKC6 - 6 5.5 - 6.0
310020 SKC10 SKC10 - 2 1.75 - 2.0
310025 SKC10 - 2.5 2.25 - 2.5
310030 SKC10 - 3 2.75 - 3.0
310035 SKC10 - 3.5 3.0 - 3.5
310040 SKC10 - 4 3.5 - 4.0
310045 SKC10 - 4.5 4.0 - 4.5
310050 SKC10 - 5 4.5 - 5.0
310055 SKC10 - 5.5 5.0 - 5.5
310060 SKC10 - 6 5.5 - 6.0
310065 SKC10 - 6.5 6.0 - 6.5
310070 SKC10 - 7 6.5 - 7.0
310075 SKC10 - 7.5 7.0 - 7.5
310080 SKC10 - 8 7.5 - 8.0
310085 SKC10 - 8.5 8.0 - 8.5
310090 SKC10 - 9 8.5 - 9.0
310095 SKC10 - 9.5 9.0 - 9.5
310100 SKC10 - 10 9.5 - 10.0
313030 SKC13 SKC13 - 3 2.75 - 3.0
313035 SKC13 - 3.5 3.0 - 3.5
313040 SKC13 - 4 3.5 - 4.0
313045 SKC13 - 4.5 4.0 - 4.5
313050 SKC13 - 5 4.5 - 5.0
313055 SKC13 - 5.5 5.0 - 5.5
313060 SKC13 - 6 5.5 - 6.0
313065 SKC13 - 6.5 6.0 - 6.5
313070 SKC13 - 7 6.5 - 7.0
313075 SKC13 - 7.5 7.0 - 7.5
313080 SKC13 - 8 7.5 - 8.0
313085 SKC13 - 8.5 8.0 - 8.5
313090 SKC13 - 9 8.5 - 9.0
313095 SKC13 - 9.5 9.0 - 9.5
313100 SKC13 - 10 9.5 - 10.0
313105 SKC13 - 10.5 10.0 - 10.5
313110 SKC13 - 11 10.5 - 11.0
313115 SKC13 - 11.5 11.0 - 11.5
313120 SKC13 - 12 11.5 - 12.0
313125 SKC13 - 12.5 12.0 - 12.5
313130 SKC13 - 13 12.5 - 13.0
316030 SKC16 SKC16-3 2.75 - 3.0
316035 SKC16-3.5 3.0 - 3.5
316040 SKC16-4 3.5 - 4.0
316045 SKC16-4.5 4.0 - 4.5
316050 SKC16-5 4.5 - 5.0
316055 SKC16-5.5 5.0 - 5.5
316060 SKC16-6 5.5 - 6.0
316605 SKC16-6.5 6.0 - 6.5
316070 SKC16-7 6.5 - 7.0
316075 SKC16-7.5 7.0 - 7.5
316080 SKC16-8 7.5 - 8.0
316085 SKC16-8.5 8.0 - 8.5
316090 SKC16-9 8.5 - 9.0
316095 SKC16-9.5 9.0 - 9.5
316100 SKC16-10 9.5 - 10.0
316105 SKC16-10.5 10.0 - 10.5
316110 SKC16-11 10.5 - 11.0
316115 SKC16-11.5 10.0 - 11.5
316120 SKC16-12 11.5 - 12.0
316125 SKC16-12.5 12.0 - 12.5
316130 SKC16-13 12.5 - 13.0
316135 SKC16-13.5 13.0 - 13.5
316140 SKC16-14 13.5 - 14.0
316145 SKC16-14.5 14.0 - 14.5
316150 SKC16-15 14.5 - 15.0
316155 SKC16-15.5 15.0 - 15.5
316160 SKC16-16 15.5 - 16.0
323040 SKC20 SKC20-4 3.5 - 4.0
323045 SKC20-4.5 4.0 - 4.5
323050 SKC20-5 4.5 - 5.0
323055 SKC20-5.5 5.0 - 5.5
323060 SKC20-6 5.5 - 6.0
323065 SKC20-6.5 6.0 - 6.5
323070 SKC20-7 6.5 - 7.0
323075 SKC20-7.5 7.0 - 7.5
323080 SKC20-8 7.5 - 8.0
323085 SKC20-8.5 8.0 - 8.5
323090 SKC20-9 8.5 - 9.0
323095 SKC20-9.5 9.0 - 9.5
323100 SKC20-10 9.5 - 10.0
323105 SKC20-10.5 10.0 - 10.5
323110 SKC20-11 10.5 - 11.0
323115 SKC20-11.5 11.0 - 11.5
323120 SKC20-12 11.5 - 12.0
323125 SKC20-12.5 12.0 - 12.5
323130 SKC20-13 12.5 - 13.0
323135 SKC20-13.5 13.0 - 13.5
323140 SKC20-14 13.5 - 14.0
323145 SKC20-14.5 14.0 - 14.5
323150 SKC20-15 14.5 - 15.0
323155 SKC20-15.5 15.0 - 15.5
323160 SKC20-16 15.5 - 16.0
323165 SKC20-16.5 16.0 - 16.5
323170 SKC20-17 16.5 - 17.0
323175 SKC20-17.5 17.0 - 17.5
323180 SKC20-18 17.5 - 18.0
323185 SKC20-18.5 18.0 - 18.5
323190 SKC20-19 18.5 - 19.0
323195 SKC20-19.5 19.0 - 19.5
323200 SKC20-20.0 19.5 - 20.0
325165 SKC25 SKC25-16.5 16.0 - 16.5
325170 SKC25-17 16.5 - 17.0
325175 SKC25-17.5 17.0 - 17.5
325180 SKC25-18 17.5 - 18.0
325185 SKC25-18.5 18.0 - 18.5
325190 SKC25-19 18.5 - 19.0
325195 SKC25-19.5 19.0 - 19.5
325200 SKC25-20 19.5 - 20.0
325205 SKC25-20.5 20.0 - 20.5
325210 SKC25-21 20.5 - 21.0
325215 SKC25-21.5 21.0 - 21.5
325220 SKC25-22 21.5 - 22.0
325225 SKC25-22.5 22.0 - 22.5
325230 SKC25-23 22.5 - 23.0
325235 SKC25-23.5 23.0 - 23.5
325240 SKC25-24 23.5 - 24.0
325245 SKC25-24.5 24.0 - 24.5
325250 SKC25-25 24.5 - 25.0
325254 SKC25-25.4 25.0 - 25.4
