Rotary Tooling Home > Rotary Tooling > SK SLIM CHUCK

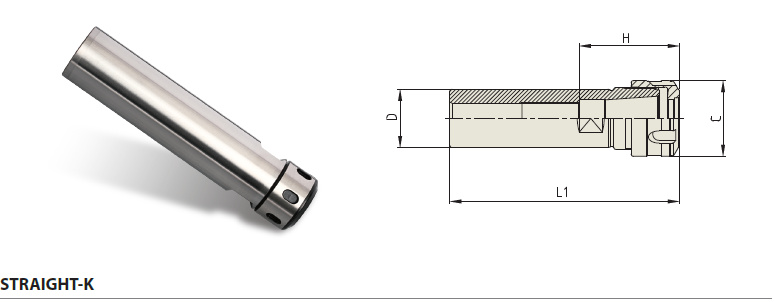

STRAIGHT SK SLIM CHUCK - K - INCH

EDP No. Shank
Diameter		 MODEL No. CLAMPING RANGE D C L1 H COLLET SERIES
Min. Max.
TS020 K3/4 K3/4 - SKA 6 - 100 .035 ~ .236 0.750 0.787 3.937 0.827 1.378 SKC6
TS021 K3/4 - SKA 6 - 140 .035 ~ .236 0.750 0.787 5.512 0.827 1.378 SKC6
TS022 K3/4 - SKA 10 - 100 .069 ~ .394 0.750 1.102 3.937 1.181 1.969 SKC10
TS023 K3/4 - SKA 10 - 140 .069 ~ .394 0.750 1.102 5.512 1.181 1.969 SKC10
TS030 K1 K1- SKA 6 - 100 .035 ~ .236 1.000 0.787 3.937 0.827 1.378 SKC6
TS031 K1- SKA 6 - 140 .035 ~ .236 1.000 0.787 5.512 0.827 1.378 SKC6
TS032 K1- SKA 10 - 100 .069 ~ .394 1.000 1.102 3.937 1.181 1.969 SKC10
TS033 K1- SKA 10 - 150 .069 ~ .394 1.000 1.102 5.906 1.181 1.969 SKC10
TS034 K1- SKA 13 - 100 .108 ~ .512 1.000 1.299 3.937 1.220 2.559 SKC13
TS035 K1- SKA 13 - 150 .108 ~ .512 1.000 1.299 5.906 1.220 2.559 SKC13
TS040 K1 1/4 K1 1/4 - SKA 10 - 100 .069 ~ .394 1.250 1.102 3.937 1.181 1.969 SKC10
TS041 K1 1/4 - SKA 10 - 150 .069 ~ .394 1.250 1.102 5.906 1.181 1.969 SKC10
TS042 K1 1/4 - SKA 13 - 100 .108 ~ .512 1.250 1.299 3.937 1.220 2.559 SKC13
TS043 K1 1/4 - SKA 13 - 150 .108 ~ .512 1.250 1.299 5.906 1.220 2.559 SKC13
TS044 K1 1/4 - SKA 16 - 100 .108 ~ .630 1.250 1.575 3.937 1.575 2.756 SKC16
TS045 K1 1/4 - SKA 16 - 150 .108 ~ .630 1.250 1.575 5.906 1.575 2.756 SKC16
TS046 K1 1/4 - SKA 20 - 100 .138 ~ .787 1.250 1.909 3.937 1.850 3.150 SKC20
TS047 K1 1/4 - SKA 20 - 150 .138 ~ .787 1.250 1.909 5.906 1.850 3.150 SKC20
