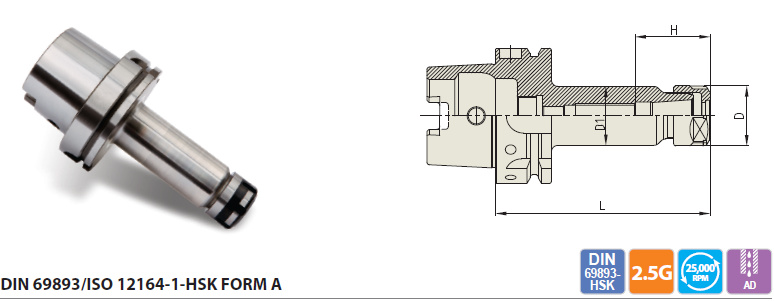

DUAL CONTACT SK SLIM CHUCK - HSK - METRIC

EDP No. TAPER No. MODEL No. CLAMPING RANGE L D D1 H COLLET SERIES
Min. Max.
TQ100 63A HSK63A - SKA 6 - 100 0.9 - 6.0 100 20.0 19.5 21 35 SKC6
TQ102 HSK63A - SKA 10 - 100 1.75 - 10.0 100 28.0 27.5 30 50 SKC10
TQ104 HSK63A - SKA 13 - 100 2.75 - 13.0 100 33.0 33.0 31 65 SKC13
TQ106 HSK63A - SKA 16 - 120 2.75 - 16.0 120 40.0 40.0 45 70 SKC16
TQ108 HSK63A - SKA 20 - 120 4.0 - 20.0 120 48.5 48.5 65 75 SKC20
TQ110 HSK63A - SKA 25 - 150 16.0 - 25.4 150 55.0 55.0 55 85 SKC25
TR100 100A HSK100A - SKA 6 - 120 0.9 - 6.0 120 20.0 19.5 21 35 SKC6
TR102 HSK100A - SKA 10 - 150 1.75 - 10.0 150 28.0 27.5 30 50 SKC10
TR104 HSK100A - SKA 13 - 150 2.75 - 13.0 150 33.0 40.0 31 65 SKC13
TR106 HSK100A - SKA 16 - 150 2.75 - 16.0 150 40.0 40.0 45 70 SKC16
TR108 HSK100A - SKA 20 - 150 4.0 - 20.0 150 48.5 48.5 65 75 SKC20
TR110 HSK100A - SKA 25 - 160 16.0 - 25.4 160 55.0 55.0 55 85 SKC25
