Rotary Tooling Home > Rotary Tooling > SK SLIM CHUCK

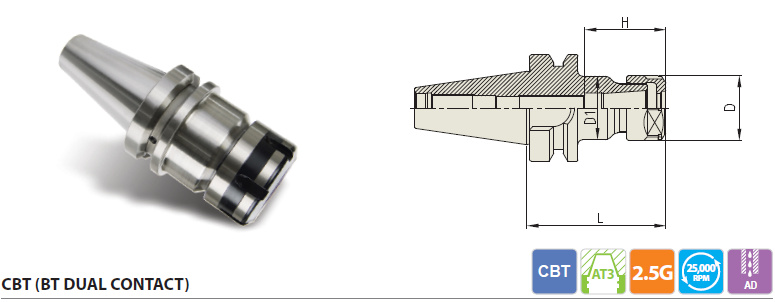

DUAL CONTACT SK SLIM CHUCK - CBT - METRIC

EDP No. TAPER No. MODEL No. CLAMPING RANGE L D D1 H COLLET SERIES
Min. Max.
TD100 30 CBT30 - SKA 6 - 60 0.9 - 6.0 60 20.0 19.5 21 35 SKC6
TD102 CBT30 - SKA 6 - 90 0.9 - 6.0 90 20.0 19.5 21 35 SKC6
TD104 CBT30 - SKA 10 - 60 1.75 - 10.0 60 28.0 27.5 30 50 SKC10
TD106 CBT30 - SKA 10 - 90 1.75 - 10.0 90 28.0 27.5 30 50 SKC10
TD108 CBT30 - SKA 13 - 60 2.75 - 13.0 60 33.0 33.0 31 65 SKC13
TD110 CBT30 - SKA 13 - 90 2.75 - 13.0 90 33.0 33.0 31 65 SKC13
TD112 CBT30 - SKA 16 - 60 2.75 - 16.0 60 40.0 40.0 45 60 SKC16
TD114 CBT30 - SKA 16 - 90 2.75 - 16.0 90 40.0 40.0 45 60 SKC16
TD116 CBT30 - SKA 20 - 60 4.0 - 20.0 60 48.5 48.5 65 75 SKC20
TD118 CBT30 - SKA 20 - 90 4.0 - 20.0 90 48.5 48.5 65 75 SKC20
TD120 CBT30 - SKA 25 - 90 16.0 - 25.4 90 55.0 55.0 55 75 SKC25
TE101 40 CBT40 - SKA 6 - 90 0.9 - 6.0 90 20.0 19.5 21 35 SKC6
TE102 CBT40 - SKA 6 - 120 0.9 - 6.0 120 20.0 19.5 21 35 SKC6
TE104 CBT40 - SKA 6 - 150 0.9 - 6.0 150 20.0 19.5 21 35 SKC6
TE106 CBT40 - SKA 10 - 90 1.75 - 10.0 90 28.0 27.5 30 50 SKC10
TE108 CBT40 - SKA 10 - 120 1.75 - 10.0 120 28.0 27.5 30 50 SKC10
TE110 CBT40 - SKA 10 - 150 1.75 - 10.0 150 28.0 27.5 30 50 SKC10
TE112 CBT40 - SKA 13 - 90 2.75 - 13.0 90 33.0 33.0 31 65 SKC13
TE114 CBT40 - SKA 13 - 120 2.75 - 13.0 120 33.0 33.0 31 65 SKC13
TE116 CBT40 - SKA 13 - 150 2.75 - 13.0 150 33.0 40.0 31 65 SKC13
TE118 CBT40 - SKA 16 - 90 2.75 - 16.0 90 40.0 40.0 45 70 SKC16
TE121 CBT40 - SKA 16 - 120 2.75 - 16.0 120 40.0 40.0 45 70 SKC16
TE122 CBT40 - SKA 16 - 150 2.75 - 16.0 150 40.0 40.0 45 70 SKC16
TE124 CBT40 - SKA 20 - 90 4.0 - 20.0 90 48.5 48.5 47 80 SKC20
TE126 CBT40 - SKA 20 - 120 4.0 - 20.0 120 48.5 48.5 47 80 SKC20
TE128 CBT40 - SKA 20 - 150 4.0 - 20.0 150 48.5 48.5 47 80 SKC20
TE130 CBT40 - SKA 25 - 90 16.0 - 25.4 90 55.0 55.0 55 85 SKC25
TE132 CBT40 - SKA 25 - 120 16.0 - 25.4 120 55.0 55.0 55 85 SKC25
TE134 CBT40 - SKA 25 - 150 16.0 - 25.4 150 55.0 55.0 55 85 SKC25
