Rotary Tooling Home > Rotary Tooling > SK SLIM CHUCK

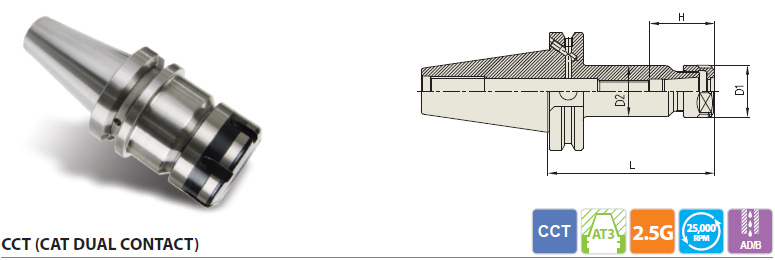

DUAL CONTACT SK SLIM CHUCK - CCT - INCH

EDP
No.		 TAPER
No.		 MODEL No. CLAMPING RANGE L D1 D2 H COLLET SERIES
Min. Max.
TB020 40 CCT40 AD/B - SKA 6 - 3.54 .036 - .236 3.540 0.787 0.768 0.827 1.378 SKC6
TB021 CCT40 AD/B - SKA 6 - 4.72 .036 - .236 4.720 0.787 0.768 0.827 1.378 SKC6
TB022 CCT40 AD/B - SKA 6 - 5.90 .036 - .236 5.900 0.787 0.768 0.827 1.378 SKC6
TB023 CCT40 AD/B - SKA 10 - 3.54 .068 - .394 3.540 1.102 1.083 1.181 1.969 SKC10
TB024 CCT40 AD/B - SKA 10 - 4.72 .068 - .394 4.720 1.102 1.083 1.181 1.969 SKC10
TB025 CCT40 AD/B - SKA 10 - 5.90 .068 - .394 5.900 1.102 1.083 1.181 1.969 SKC10
TB026 CCT40 AD/B - SKA 13 - 3.54 .108 - .512 3.540 1.299 1.299 1.220 2.559 SKC13
TB027 CCT40 AD/B - SKA 13 - 4.72 .108 - .512 4.720 1.299 1.299 1.220 2.559 SKC13
TB028 CCT40 AD/B - SKA 13 - 5.90 .108 - .512 5.900 1.299 1.299 1.220 2.559 SKC13
TB029 CCT40 AD/B - SKA 16 - 3.54 .108 - .630 3.540 1.575 1.575 1.772 2.756 SKC16
TB030 CCT40 AD/B - SKA 16 - 4.72 .108 - .630 4.720 1.575 1.575 1.772 2.756 SKC16
TB031 CCT40 AD/B - SKA 16 - 5.90 .108 - .630 5.900 1.575 1.575 1.772 2.756 SKC16
TB032 CCT40 AD/B - SKA 20 - 3.54 .138 - .787 3.540 1.909 1.909 1.850 3.150 SKC20
TB033 CCT40 AD/B - SKA 20 - 4.72 .138 - .787 4.720 1.909 1.909 1.850 3.150 SKC20
TB034 CCT40 AD/B - SKA 20 - 5.90 .138 - .787 5.900 1.909 1.909 1.850 3.150 SKC20
TB035 CCT40 AD/B - SKA 25 - 3.54 .630 - 1.000 3.540 2.165 2.165 2.165 3.346 SKC25
TB036 CCT40 AD/B - SKA 25 - 4.72 .630 - 1.000 4.720 2.165 2.165 2.165 3.346 SKC25
TB037 CCT40 AD/B - SKA 25 - 5.90 .630 - 1.000 5.900 2.165 2.165 2.165 3.346 SKC25
TC020 50 CCT50 AD/B - SKA 6 - 4.13 .036 - .236 4.130 0.787 0.768 0.827 1.378 SKC6
TC021 CCT50 AD/B - SKA 6 - 5.31 .036 - .236 5.310 0.787 0.768 0.827 1.378 SKC6
TC022 CCT50 AD/B - SKA 6 - 6.50 .036 - .236 6.500 0.787 0.768 0.827 1.378 SKC6
TC023 CCT50 AD/B - SKA 6 - 7.68 .036 - .236 7.680 0.787 0.768 0.827 1.378 SKC6
TC024 CCT50 AD/B - SKA 10 - 4.13 .068 - .394 4.130 1.102 1.083 1.181 1.969 SKC10
TC025 CCT50 AD/B - SKA 10 - 5.31 .068 - .394 5.310 1.102 1.083 1.181 1.969 SKC10
TC026 CCT50 AD/B - SKA 10 - 6.50 .068 - .394 6.500 1.102 1.083 1.181 1.969 SKC10
TC027 CCT50 AD/B - SKA 10 - 7.68 .068 - .394 7.680 1.102 1.083 1.181 1.969 SKC10
TC028 CCT50 AD/B - SKA 13 - 4.13 .108 - .512 4.130 1.299 1.299 1.220 2.559 SKC13
TC029 CCT50 AD/B - SKA 13 - 5.31 .108 - .512 5.310 1.299 1.299 1.220 2.559 SKC13
TC030 CCT50 AD/B - SKA 13 - 6.50 .108 - .512 6.500 1.299 1.299 1.220 2.559 SKC13
TC031 CCT50 AD/B - SKA 13 - 7.68 .108 - .512 7.680 1.299 1.299 1.220 2.559 SKC13
TC032 CCT50 AD/B - SKA 16 - 4.13 .108 - .630 4.130 1.575 1.575 1.772 2.362 SKC16
TC033 CCT50 AD/B - SKA 16 - 5.31 .108 - .630 5.310 1.575 1.575 1.772 2.756 SKC16
TC034 CCT50 AD/B - SKA 16 - 6.50 .108 - .630 6.500 1.575 1.575 1.772 2.756 SKC16
TC035 CCT50 AD/B - SKA 16 - 7.68 .108 - .630 7.680 1.575 1.575 1.772 2.756 SKC16
TC036 CCT50 AD/B - SKA 20 - 4.13 .138 - .787 4.130 1.909 1.909 1.850 3.150 SKC20
TC037 CCT50 AD/B - SKA 20 - 5.31 .138 - .787 5.310 1.909 1.909 1.850 3.150 SKC20
TC038 CCT50 AD/B - SKA 20 - 6.50 .138 - .787 6.500 1.909 1.909 1.850 3.150 SKC20
TC039 CCT50 AD/B - SKA 20 - 7.68 .138 - .787 7.680 1.909 1.909 1.850 3.150 SKC20
TC040 CCT50 AD/B - SKA 25 - 4.13 .630 - 1.000 4.130 2.165 2.165 2.165 3.346 SKC25
TC041 CCT50 AD/B - SKA 25 - 5.31 .630 - 1.000 5.310 2.165 2.165 2.165 3.346 SKC25
TC042 CCT50 AD/B - SKA 25 - 6.50 .630 - 1.000 6.500 2.165 2.165 2.165 3.346 SKC25
TC043 CCT50 AD/B - SKA 25 - 7.68 .630 - 1.000 7.680 2.165 2.165 2.165 3.346 SKC25
