Rotary Tooling Home > Rotary Tooling > ER COLLET CHUCK

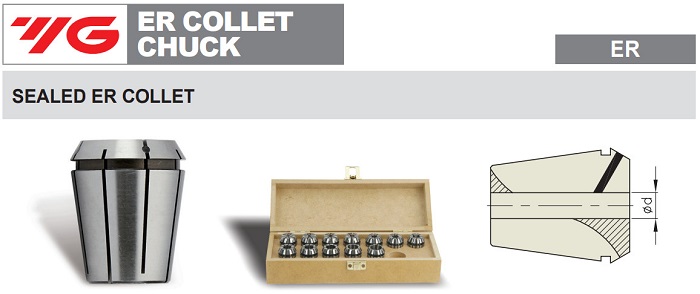

SEALED ER COLLET (INCH TYPE)
  SEALED ER COLLET (INCH TYPE)
EDP No. CLAMPING CAPACITY
TYPE ER11S
110108S1/8
110532S5/32
110316S3/16
110732S7/32
110104S1/4
ER11S05SSTANDARD SET
Φ1/8" to 1/4"
5PCS

EDP No. CLAMPING CAPACITY
TYPE ER16S
160108S1/8
160532S5/32
160316S3/16
160732S7/32
160104S1/4
160932S9/32
160516S5/16
161132S11/32
160308S3/8
161332S13/32
ER16S10SSTANDARD SET
Φ1/8" to 13/32"
10PCS

EDP No. CLAMPING CAPACITY
TYPE ER20S
200108S1/8
200532S5/32
200316S3/16
200732S7/32
200104S1/4
200932S9/32
200516S5/16
201132S11/32
200308S3/8
201332S13/32
200716S7/16
201532S15/32
200102S1/2
ER20S13SSTANDARD SET
Φ1/8" to 1/2"
13PCS

EDP No. CLAMPING CAPACITY
TYPE ER25S
250108S1/8
250532S5/32
250316S3/16
250732S7/32
250104S1/4
250932S9/32
250516S5/16
251132S11/32
250308S3/8
251332S13/32
250716S7/16
251532S15/32
250102S1/2
251732S17/32
250916S9/16
251932S19/32
250508S5/8
ER25S17SSTANDARD SET
Φ1/8" to 5/8"
17PCS

EDP No. CLAMPING CAPACITY
TYPE ER32S
320108S1/8
320532S5/32
320316S3/16
320732S7/32
320104S1/4
320932S9/32
320516S5/16
321132S11/32
320308S3/8
321332S13/32
320716S7/16
321532S15/32
320102S1/2
321732S17/32
320916S9/16
321932S19/32
320508S5/8
322132S21/32
321116S11/16
322332S23/32
320304S3/4
ER32S21SSTANDARD SET
Φ1/8" to 3/4"
21PCS

EDP No. CLAMPING CAPACITY
TYPE ER40S
400108S1/8
400532S5/32
400316S3/16
400732S7/32
400104S1/4
400932S9/32
400516S5/16
401132S11/32
400308S3/8
401332S13/32
400716S7/16
401532S15/32
400102S1/2
401732S17/32
400916S9/16
401932S19/32
400508S5/8
402132S21/32
401116S11/16
402332S23/32
400304S3/4
402532S25/32
401316S13/16
402732S27/32
400708S7/8
402932S29/32
401516S15/16
403132S31/32
401000S1
ER40S29SSTANDARD SET
Φ1/8" to 1"
29PCS
