Home >
Rotary Tooling > ER COLLET CHUCK
|
 |
|
|
|
|

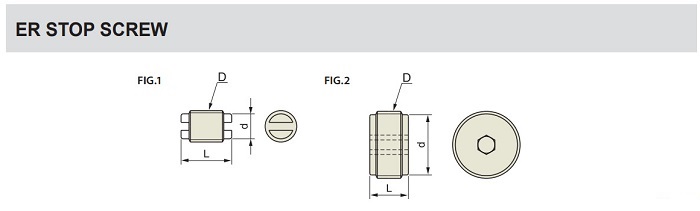

ER STOP SCREW
|
|
|
|
|
|
|
|
 ER STOP SCREW |
| SERIES |
L |
d |
D |
TYPE |
EDP NO. |
| ER11 | 0.50 | 0.25 | UN5/16 - 18 | FIG.1 | ZZ060 |
| ER16 | 0.50 | 0.35 | UN7/16 - 16 | FIG.2 | ZZ065 |
| ER20 | 0.50 | 0.48 | UN9/16 - 16 | FIG.2 | ZZ068 |
| ER25 | 0.50 | 0.6 | UN11/16 - 16 | FIG.2 | ZZ071 |
| ER32 | 0.50 | 0.79 | UN7/8 - 16 | FIG.2 | ZZ074 |
|
|
 |
|
