| Rotary Tooling |
Home >
Rotary Tooling > ER COLLET CHUCK
|
 |
|
|
|
|

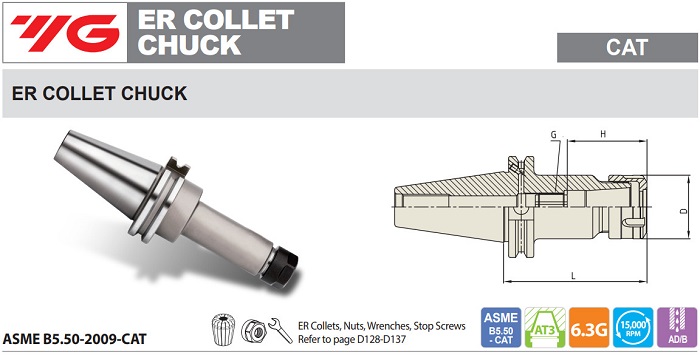

ER COLLET CHUCK CAT
|
|
|
|
|
|
|
|
 ER COLLET CHUCK CAT |
| TAPER No. |
MODEL No. |
CLAMPING RANGE |
L |
D |
COLLET SERIES |
EDP No. |
| STUB | | | | | | Unit: inch |
| 40 | CAT40 AD/B - ER20 - 2.55 | 0.039-0.511 | 2.55 | 1.26 | ER20 | BK232B |
| CAT40 AD/B - ER25 - 2.50 | 0.039-0.629 | 2.50 | 1.65 | ER25 | BK233B |
| CAT40 AD/B - ER32 - 2.70 | 0.078-0.787 | 2.70 | 1.88 | ER32 | BK234B |
| | | | | | |
| STANDARD | | | | | | Unit: inch |
| 40 | CAT40 AD/B - ER11 - 3.00 | 0.063-0.250 | 3.00 | 0.63 | ER11 | BK030B |
| CAT40 AD/B - ER16 - 3.00 | 0.031-0.406 | 3.00 | 1.08 | ER16 | BK031B |
| CAT40 AD/B - ER16 - 4.00 | | 4.00 | | ER16 | BK033B |
| CAT40 AD/B - ER20 - 4.00 | 0.039-0.511 | 4.00 | 1.26 | ER20 | BK032B |
| CAT40 AD/B - ER25 - 4.00 | 0.039-0.629 | 4.00 | 1.65 | ER25 | BK133B |
| CAT40 AD/B - ER32 - 4.00 | 0.078-0.787 | 4.00 | 1.88 | ER32 | BK134B |
| CAT40 AD/B - ER40 - 4.00 | 0.118-1.024 | 4.00 | 2.48 | ER40 | BK136B |
| 50 | CAT50 AD/B - ER16 - 4.00 | 0.031-0.406 | 4.00 | 1.08 | ER16 | BL031B |
| CAT50 AD/B - ER20 - 4.00 | 0.039-0.511 | 4.00 | 1.26 | ER20 | BL032B |
| CAT50 AD/B - ER25 - 4.00 | 0.039-0.629 | 4.00 | 1.65 | ER25 | BL033B |
| CAT50 AD/B - ER32 - 4.00 | 0.078-0.787 | 4.00 | 1.88 | ER32 | BL034B |
| CAT50 AD/B - ER40 - 4.00 | 0.118-1.024 | 4.00 | 2.48 | ER40 | BL036B |
| | | | | | |
| EXTENDED | | | | | | Unit: inch |
| 40 | CAT40 AD/B - ER16 - 6.00 | 0.031-0.406 | 6.00 | 1.08 | ER16 | BK331B |
| CAT40 AD/B - ER20 - 6.00 | 0.039-0.511 | 6.00 | 1.26 | ER20 | BK332B |
| CAT40 AD/B - ER25 - 6.00 | 0.039-0.629 | 6.00 | 1.65 | ER25 | BK333B |
| CAT40 AD/B - ER32 - 6.00 | 0.078-0.787 | 6.00 | 1.88 | ER32 | BK334B |
| 50 | CAT50 AD/B - ER16 - 6.00 | 0.031-0.406 | 6.00 | 1.08 | ER16 | BL331B |
| CAT50 AD/B - ER20 - 6.00 | 0.039-0.511 | 6.00 | 1.26 | ER20 | BL332B |
| CAT50 AD/B - ER25 - 6.00 | 0.039-0.629 | 6.00 | 1.65 | ER25 | BL333B |
| CAT50 AD/B - ER32 - 6.00 | 0.078-0.787 | 6.00 | 1.88 | ER32 | BL334B |
| | | | | | |
| 40 | CAT40 AD/B - ER20 - 8.00 | 0.039-0.511 | 8.00 | 1.26 | ER20 | BK432B |
|
|
 |
|
