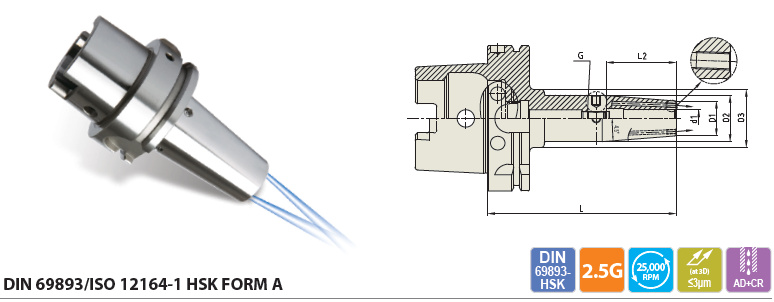

HSK 100A Metric (all GL) Coolant Channel - resealable
|
|
|
|
|
|
|
|
| EDP | TAPER NO | MODEL No. | d1 | D1 | D2 | D3 | L | L2 | G | WEIGHT (kg) |
| VR107 | 100A | HSK100A - SFH 3 - 130 *1 | 3 | 10 | 15 | 40 | 130 | 10 | - | - |
| VR108 | 100A | HSK100A - SFH 4 - 130 *1 | 4 | 11 | 15 | 40 | 130 | 12 | - | - |
| P2862143C | 100A | HSK100A - SFH 3C -85 *2 | 3 | 12 | 17 | 40 | 85 | 10 | - | - |
| P2862144C | 100A | HSK100A -SFH 4C - 85 *2 | 4 | 12 | 17 | 40 | 85 | 12 | - | - |
| P2862145C | 100A | HSK100A - SFH 5C - 85 *2 | 5 | 12 | 17 | 40 | 85 | 15 | - | - |
| VR111JR | 100A | HSK100A -SFH 6CR - 85 | 6 | 21 | 27 | 40 | 85 | 36 | M5x0.8 | 1.3 |
| VR101JR | 100A | HSK100A -SFH 6CR - 130 | 6 | 21 | 27 | 40 | 130 | 36 | M5x0.8 | - |
| VR112JR | 100A | HSK100A -SFH 6CR - 160 | 6 | 21 | 27 | 40 | 160 | 36 | M5x0.8 | 1.8 |
| VR113JR | 100A | HSK100A -SFH 8CR - 85 | 8 | 21 | 27 | 40 | 85 | 36 | M6x1.0 | 1.3 |
| VR102JR | 100A | HSK100A -SFH 8CR - 130 | 8 | 21 | 27 | 40 | 130 | 36 | M6x1.0 | - |
| VR114JR | 100A | HSK100A -SFH 8CR - 160 | 8 | 21 | 27 | 40 | 160 | 36 | M6x1.0 | 1.8 |
| VR115JR | 100A | HSK100A -SFH 10CR - 90 | 10 | 24 | 32 | 40 | 90 | 42 | M8x1.0 | 1.3 |
| VR103JR | 100A | HSK100A -SFH 10CR - 130 | 10 | 24 | 32 | 40 | 130 | 42 | M8x1.0 | - |
| VR116JR | 100A | HSK100A -SFH 10CR - 160 | 10 | 24 | 32 | 40 | 160 | 42 | M8x1.0 | 1.8 |
| VR117JR | 100A | HSK100A -SFH 12CR - 95 | 12 | 24 | 32 | 40 | 95 | 47 | M10x1.0 | 1.3 |
| VR104JR | 100A | HSK100A -SFH 12CR - 130 | 12 | 24 | 32 | 40 | 130 | 47 | M10x1.0 | - |
| VR118JR | 100A | HSK100A -SFH 12CR - 160 | 12 | 24 | 32 | 40 | 160 | 47 | M10x1.0 | 1.8 |
| VR119JR | 100A | HSK100A -SFH 14CR - 95 | 14 | 27 | 34 | 40 | 95 | 47 | M10x1.0 | 1.4 |
| VR105JR | 100A | HSK100A -SFH 14CR - 130 | 14 | 27 | 34 | 40 | 130 | 47 | M10x1.0 | - |
| VR120JR | 100A | HSK100A -SFH 14CR - 160 | 14 | 27 | 34 | 40 | 160 | 47 | M10x1.0 | 1.9 |
| VR121JR | 100A | HSK100A -SFH 16CR - 100 | 16 | 27 | 34 | 40 | 100 | 50 | M12x1.0 | 1.4 |
| VR106JR | 100A | HSK100A -SFH 16CR - 130 | 16 | 27 | 34 | 40 | 130 | 50 | M12x1.0 | - |
| VR122JR | 100A | HSK100A -SFH 16CR - 160 | 16 | 27 | 34 | 40 | 160 | 50 | M12x1.0 | 1.9 |
| VR123JR | 100A | HSK100A -SFH 18CR - 100 | 18 | 33 | 42 | - | 100 | 50 | M12x1.0 | 1.5 |
| VR107JR | 100A | HSK100A -SFH 18CR - 130 | 18 | 33 | 42 | - | 130 | 50 | M12x1.0 | - |
| VR124JR | 100A | HSK100A -SFH 18CR - 160 | 18 | 33 | 42 | - | 160 | 50 | M12x1.0 | 2 |
| VR125JR | 100A | HSK100A -SFH 20CR - 100 | 20 | 33 | 42 | - | 100 | 52 | M16x1.0 | 1.5 |
| VR108JR | 100A | HSK100A -SFH 20CR - 130 | 20 | 33 | 42 | - | 130 | 52 | M16x1.0 | - |
| VR126JR | 100A | HSK100A -SFH 20CR - 160 | 20 | 33 | 42 | - | 160 | 52 | M16x1.0 | 2 |
| VR127JR | 100A | HSK100A -SFH 25CR - 115 | 25 | 44 | 53 | - | 115 | 58 | M16x1.0 | 1.8 |
| VR109JR | 100A | HSK100A -SFH 25CR - 130 | 25 | 44 | 53 | - | 130 | 58 | M16x1.0 | - |
| VR128JR | 100A | HSK100A -SFH 25CR - 160 | 25 | 44 | 53 | - | 160 | 58 | M16x1.0 | 2.3 |
|
|
 |
|
