Rotary Tooling Home >

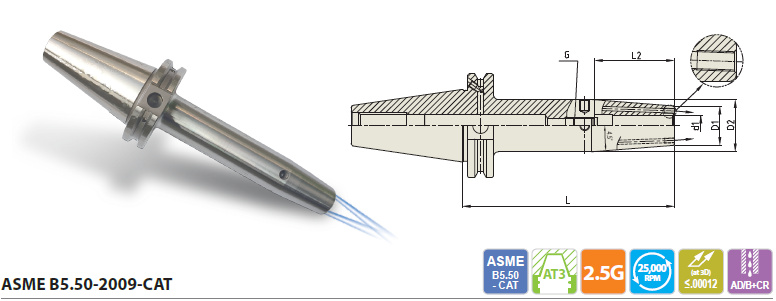

SHRINK FIT HOLDER (Coolant Channel Resealable) - CAT40 - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VK221JR 40 CAT40 AD/B - SFH 1/4CR - 5.12 0.250 0.827 1.063 5.120 1.417 M5x.8mm
VK222JR CAT40 AD/B - SFH 5/16CR - 5.12 0.313 0.827 1.063 5.120 1.417 M6x1.0mm
VK219JR CAT40 AD/B - SFH 3/8CR - 5.12 0.375 0.945 1.260 5.120 1.713 M8x1.0mm
VK223JR CAT40 AD/B - SFH 7/16CR - 5.12 0.438 0.945 1.260 5.120 1.929 M10x1.0mm
VK220JR CAT40 AD/B - SFH 1/2CR - 5.12 0.500 0.945 1.260 5.120 1.929 M10x1.0mm
VK224JR CAT40 AD/B - SFH 5/8CR - 5.12 0.625 1.063 1.339 5.120 2.047 M12x1.0mm
VK225JR CAT40 AD/B - SFH 3/4CR - 5.12 0.750 1.299 1.654 5.120 2.126 M16x1.0mm
VK226JR CAT40 AD/B - SFH 1CR - 5.12 1.000 1.732 2.087 5.120 2.362 M16x1.0mm
