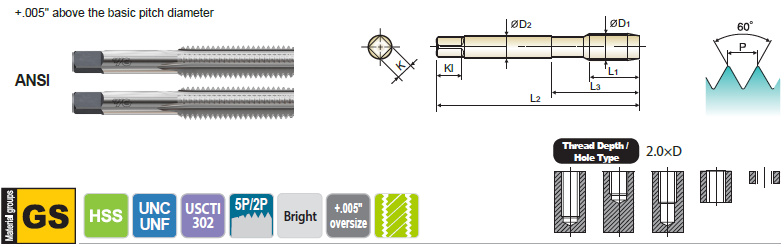

Hand Tap Oversize Tap - T7326 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
Bright
D1 Plug Bottoming L2 L1 L3 D2 K Kl
#6 32UNC T7326247 - +.005" 2.000 0.689 0.965 0.141 0.110 0.190 3
#8 32UNC T7326287 - +.005" 2.126 0.752 1.047 0.168 0.131 0.250 4
#10 24UNC T7326327 - +.005" 2.374 0.906 1.220 0.194 0.152 0.250 4
#10 32UNF T7326347 - +.005" 2.374 0.906 1.220 0.194 0.152 0.250 4
1/4 20UNC T7326407 T7326408 +.005" 2.500 1.000 1.354 0.255 0.191 0.310 4
1/4 28UNF T7326427 - +.005" 2.500 1.000 1.354 0.255 0.191 0.310 4
5/16 18UNC T7326447 T7326448 +.005" 2.720 1.126 1.500 0.318 0.238 0.380 4
5/16 24UNF T7326467 - +.005" 2.720 1.126 1.500 0.318 0.238 0.380 4
3/8 16UNC T7326487 T7326488 +.005" 2.937 1.252 1.646 0.381 0.286 0.440 4
3/8 24UNF T7326507 - +.005" 2.937 1.252 1.646 0.381 0.286 0.440 4
7/16 14UNC T7326527 - +.005" 3.157 1.437 - 0.323 0.242 0.410 4
1/2 13UNC T7326567 - +.005" 3.374 1.657 - 0.367 0.275 0.440 4
1/2 20UNF T7326587 - +.005" 3.374 1.657 - 0.367 0.275 0.440 4
5/8 11UNC T7326647 - +.005" 3.811 1.811 - 0.480 0.360 0.560 4
3/4 10UNC T7326707 - +.005" 4.252 2.000 - 0.590 0.442 0.690 4
