YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

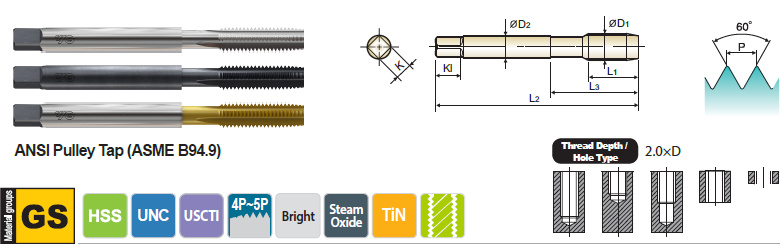

Size	T.P.I	EDP No.			Limit	Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute
D1	T.P.I	Bright	Steam Oxide	TiN	Limit	L2	L1	L3	D2	K	KI	No. of Flute
1/4	20UNC	T7616403	T6616403	T8616403	H3	6.000	1.000	1.575	0.255	0.191	0.310	4
5/16	18UNC	T7616443	T6616443	T8616443	H3	6.000	1.126	1.850	0.318	0.238	0.380	4
3/8	16UNC	T7616483	T6616483	T8616483	H3	6.000	1.252	2.028	0.381	0.286	0.440	4
7/16	14UNC	T7616523	T6616523	T8616523	H3	6.000	1.437	1.882	0.440	0.333	0.500	4
1/2	13UNC	T7616563	T6616563	T8616563	H3	6.000	1.657	2.520	0.507	0.380	0.560	4
5/8	11UNC	T7616643	T6616643	T8616643	H3	6.000	1.811	2.776	0.633	0.475	0.690	4
