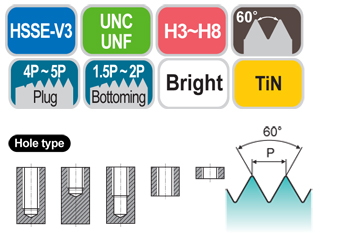

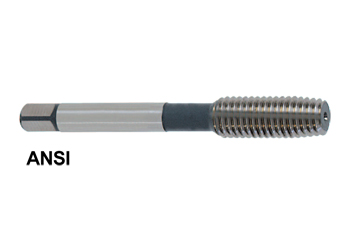

Size	T.P.I	EDP No.				Limit	Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Lobe
Size		Plug		Bottom			Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length
D1		Bright	TiN	Bright	TiN		L2	L1	L3	D2	K	Kl
#4	40UNC	Z4163	Z5163	Z6163	Z7163	H3	1.874	0.563	0.799	0.141	0.110	0.190	4
#4	40UNC	Z4165	Z5165	Z6165	Z7165	H5	1.874	0.563	0.799	0.141	0.110	0.190	4
#4	48UNF	Z4183	Z5183	Z6183	Z7183	H3	1.874	0.563	0.799	0.141	0.110	0.190	4
#4	48UNF	Z4185	Z5185	Z6185	Z7185	H5	1.874	0.563	0.799	0.141	0.110	0.190	4
#5	40UNC	Z4203	Z5203	Z6203	Z7203	H3	1.937	0.626	0.882	0.141	0.110	0.190	4
#5	40UNC	Z4205	Z5205	Z6205	Z7205	H5	1.937	0.626	0.882	0.141	0.110	0.190	4
#5	44UNF	Z4225	Z5225	Z6225	Z7225	H5	1.937	0.626	0.882	0.141	0.110	0.190	4
#6	32UNC	Z4243	Z5243	Z6243	Z7243	H3	2.000	0.480	0.689	0.141	0.110	0.190	4
#6	32UNC	Z4245	Z5245	Z6245	Z7245	H5	2.000	0.480	0.689	0.141	0.110	0.190	4
#6	40UNF	Z4263	Z5263	Z6263	Z7263	H3	2.000	0.480	0.689	0.141	0.110	0.190	4
#6	40UNF	Z4265	Z5265	Z6265	Z7265	H5	2.000	0.480	0.689	0.141	0.110	0.190	4
#8	32UNC	Z4283	Z5283	Z6283	Z7283	H3	2.126	0.500	0.752	0.168	0.131	0.250	4
#8	32UNC	Z4285	Z5285	Z6285	Z7285	H5	2.126	0.500	0.752	0.168	0.131	0.250	4
#8	36UNF	Z4303	Z5303	Z6303	Z7303	H3	2.126	0.500	0.752	0.168	0.131	0.250	4
#8	36UNF	Z4305	Z5305	Z6305	Z7305	H5	2.126	0.500	0.752	0.168	0.131	0.250	4
#10	24UNC	Z4324	Z5324	Z6324	Z7324	H4	2.374	0.630	0.906	0.194	0.152	0.250	4
#10	24UNC	Z4326	Z5326	Z6326	Z7326	H6	2.374	0.630	0.906	0.194	0.152	0.250	4
#10	32UNF	Z4344	Z5344	Z6344	Z7344	H4	2.374	0.630	0.906	0.194	0.152	0.250	4
#10	32UNF	Z4346	Z5346	Z6346	Z7346	H6	2.374	0.630	0.906	0.194	0.152	0.250	4
#12	24UNC	Z4364	Z5364	Z6364	Z7364	H4	2.374	0.630	0.906	0.220	0.165	0.280	4
#12	24UNC	Z4366	Z5366	Z6366	Z7366	H6	2.374	0.630	0.906	0.220	0.165	0.280	4
1/4	20UNC	Z4404	Z5404	Z6404	Z7404	H4	2.500	0.858	1.000	0.255	0.191	0.310	4
1/4	20UNC	Z4406	Z5406	Z6406	Z7406	H6	2.500	0.858	1.000	0.255	0.191	0.310	4
1/4	28UNF	Z4424	Z5424	Z6424	Z7424	H4	2.500	0.858	1.000	0.255	0.191	0.310	4
1/4	28UNF	Z4426	Z5426	Z6426	Z7426	H6	2.720	0.858	1.000	0.255	0.191	0.310	4
5/16	18UNC	Z4445	Z5445	Z6445	Z7445	H5	2.720	0.929	1.126	0.318	0.238	0.380	4
5/16	18UNC	Z4447	Z5447	Z6447	Z7447	H7	2.720	0.929	1.126	0.318	0.238	0.380	4
5/16	24UNF	Z4465	Z5465	Z6465	Z7465	H5	2.720	0.929	1.126	0.318	0.238	0.380	4
5/16	24UNF	Z4467	Z5467	Z6467	Z7467	H7	2.937	0.929	1.126	0.318	0.238	0.380	4
3/8	16UNC	Z4485	Z5485	Z6485	Z7485	H5	2.937	0.980	1.252	0.381	0.286	0.440	4
3/8	16UNC	Z4487	Z5487	Z6487	Z7487	H7	2.937	0.980	1.252	0.381	0.286	0.440	4
3/8	24UNF	Z4505	Z5505	Z6505	Z7505	H5	2.937	0.980	1.252	0.381	0.286	0.440	4
3/8	24UNF	Z4507	Z5507	Z6507	Z7507	H7	2.937	0.980	1.252	0.381	0.286	0.440	4
7/16	14UNC	Z4528	Z5528	Z6528	Z7528	H8	3.157	0.949	1.437	0.323	0.242	0.410	4
7/16	20UNF	Z4548	Z5548	Z6548	Z7548	H8	3.157	0.949	1.437	0.323	0.242	0.410	4
1/2	13UNC	Z4565	Z5565	Z6565	Z7565	H5	3.374	1.000	1.594	0.367	0.275	0.440	4
1/2	13UNC	Z4568	Z5568	Z6568	Z7568	H8	3.374	1.000	1.594	0.367	0.275	0.440	4
1/2	20UNF	Z4585	Z5585	Z6585	Z7585	H5	3.374	1.000	1.594	0.367	0.275	0.440	4
1/2	20UNC	Z4588	Z5588	Z6588	Z7588	H8	3.374	1.000	1.594	0.367	0.275	0.440	4
9/16	12UNC	Z4607	Z5607	Z6607	Z7607	H7	3.594	1.000	1.657	0.429	0.322	0.500	4
9/16	12UNC	Z4600	Z5600	Z6600	Z7600	H10	3.594	1.000	1.657	0.429	0.322	0.500	4
9/16	18UNF	Z4628	Z5628	Z6628	Z7628	H8	3.594	1.000	1.657	0.429	0.322	0.500	4
9/16	18UNF	Z4620	Z5620	Z6620	Z7620	H10	3.594	1.000	1.657	0.429	0.322	0.500	4
5/8	11UNC	Z4648	Z5648	Z6648	Z7648	H8	3.811	1.000	1.811	0.480	0.360	0.560	4
5/8	11UNC	Z4640	Z5640	Z6640	Z7640	H10	3.811	1.000	1.811	0.480	0.360	0.560	4
5/8	18UNF	Z4660	Z5660	Z6660	Z7660	H10	3.811	1.000	1.811	0.480	0.360	0.560	4
3/4	10UNC	Z4700	Z5700	Z6700	Z7700	H10	4.252	1.000	2.000	0.590	0.442	0.690	4
3/4	10UNC	Z470B	Z570B	Z670B	Z770B	H12	4.252	1.000	2.000	0.590	0.442	0.690	4
3/4	16UNF	Z4728	Z5728	Z6728	Z7728	H8	4.252	1.000	2.000	0.590	0.442	0.690	4
3/4	16UNF	Z4720	Z5720	Z6720	Z7720	H10	4.252	1.000	2.000	0.590	0.442	0.690	4
