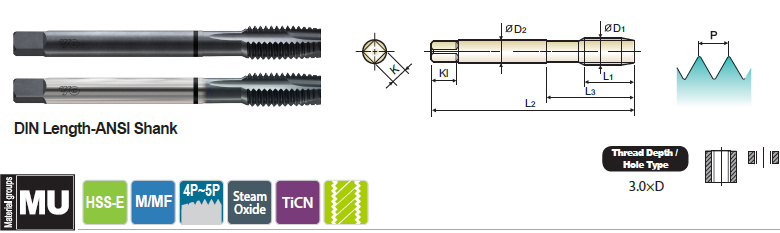

SPIRAL POINT COMBO TAP FOR MULTI-PURPOSE ANSI SHANK/ DIN LENGTH- METRIC

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide TiCN L2 L1 L3 D2 K Kl
M3 0.5 TK203S TK203C D3 2.205 0.374 0.646 0.141 0.110 0.190 3
M3.5 0.6 TK224S TK224C D4 2.205 0.413 0.709 0.141 0.110 0.190 3
M4 0.7 TK244S TK244C D4 2.480 0.453 0.768 0.168 0.131 0.250 3
M5 0.8 TK284S TK284C D4 2.756 0.531 0.933 0.194 0.152 0.250 3
M6 1.0 TK315S TK315C D5 3.150 0.591 1.000 0.255 0.191 0.310 3
M7 1.0 T1345S TK345C D5 3.150 0.669 1.126 0.318 0.238 0.380 3
M8 1.0 T1375S TK375C D5 3.543 0.669 1.126 0.318 0.238 0.380 3
M8 1.25 TK365S TK365C D5 3.543 0.669 1.126 0.318 0.238 0.380 3
M10 1.5 TK426S TK426C D6 3.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 TK435S TK435C D5 3.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 TK506S TK506C D6 4.331 0.984 1.657 0.367 0.275 0.440 3
M12 1.50 T1516S TK516C D6 3.937 0.984 1.657 0.367 0.275 0.440 3
M12 1.25 TK525S TK525C D5 3.937 0.984 1.657 0.367 0.275 0.440 3
M14 2.0 TK547S TK547C D7 4.331 0.984 1.657 0.429 0.322 0.500 3
M14 1.5 TK556S TK556C D6 3.937 0.984 1.657 0.429 0.322 0.500 3
M16 2.0 TK607S TK607C D7 4.331 1.083 1.811 0.480 0.360 0.560 3
M16 1.5 TK616S TK616C D6 3.937 1.083 1.811 0.480 0.360 0.560 3
M18 2.5 TK657S TK657C D7 4.921 1.083 1.811 0.542 0.406 0.630 3
M18 1.5 TK676S TK676C D6 4.331 1.083 1.811 0.542 0.406 0.630 3
M20 1.5 TK676S TK676C D6 4.921 1.201 2.000 0.652 0.489 0.690 3
M20 2.5 T1707S TK707C D7 5.512 1.201 2.224 0.652 0.489 0.690 3
