Tapping

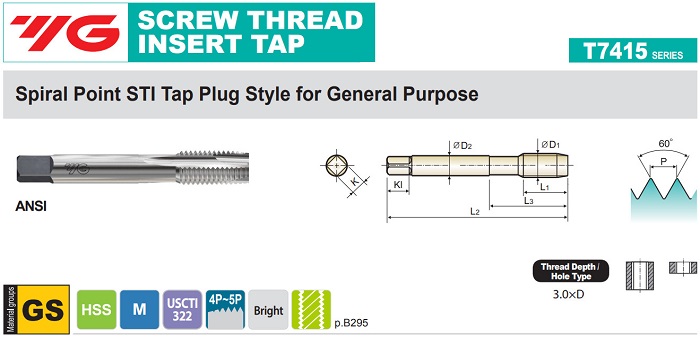

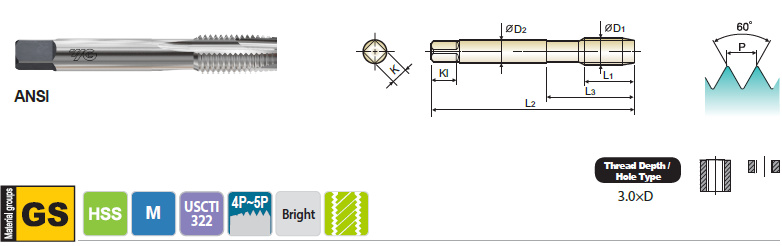

SPIRAL POINT TAPS SCREW THREAD INSERT for GENERAL PURPOSE - METRIC


Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bright L2 L1 L3 D2 K Kl
M2 0.4 T7415132 D2 1.811 0.295 0.563 0.141 0.110 0.190 2
M2.5 0.45 T7415172 D2 1.937 0.374 0.646 0.141 0.110 0.190 2
M3 0.5 T7415202 D2 2.000 0.413 0.709 0.141 0.110 0.190 3
M4 0.7 T7415243 D3 2.374 0.531 0.933 0.194 0.152 0.250 3
M5 0.8 T7415283 D3 2.500 0.591 1.000 0.255 0.191 0.310 3
M6 1.0 T7415313 D3 2.720 0.669 1.126 0.318 0.238 0.380 3
M8 1.25 T7415363 D3 2.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.5 T7415424 D4 3.374 0.984 2.067 0.367 0.275 0.440 3
M12 1.75 T7415504 D4 3.594 0.984 2.067 0.429 0.322 0.500 3
