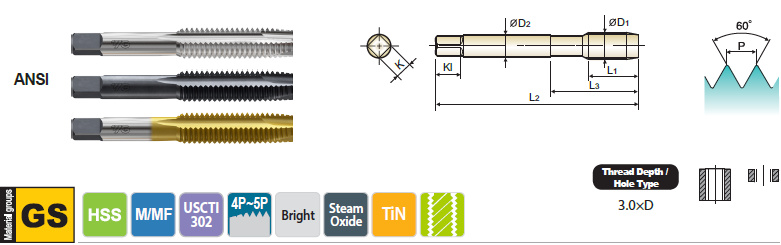

STANDARD TAPS: SPIRAL POINT PLUG STYLE for GENERAL PURPOSE - METRIC

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bright Steam Oxide TiN L2 L1 L3 D2 K KI
M1.6 0.35 T7217093 T6217093 T8217093 D3 1.634 0.315 - 0.141 0.110 0.190 2
M2 0.4 T7217133 T6217133 T8217133 D3 1.752 0.394 - 0.141 0.110 0.190 2
M2.5 0.45 T7217173 T6217173 T8217173 D3 1.811 0.457 - 0.141 0.110 0.190 2
M3 0.5 T7217203 T6217203 T8217203 D3 1.937 0.622 - 0.141 0.110 0.190 2
M3.5 0.6 T7217224 T6217224 T8217224 D4 2.000 0.689 - 0.141 0.110 0.190 2
M4 0.7 T7217244 T6217244 T8217244 D4 2.126 0.756 - 0.168 0.131 0.250 2
M4.5 0.75 T7217264 T6217264 T8217264 D4 2.374 0.909 - 0.194 0.152 0.250 2
M5 0.8 T7217284 T6217284 T8217284 D4 2.374 0.933 - 0.194 0.152 0.250 2
M6 1.0 T7217315 T6217315 T8217315 D5 2.500 0.980 - 0.255 0.191 0.310 2
M7 1.0 T7217345 T6217345 T8217345 D5 2.720 1.091 - 0.318 0.238 0.380 2
M8 1.25 T7217365 T6217365 T8217365 D5 2.720 1.126 - 0.318 0.238 0.380 2
M8 1.0 T7217375 T6217375 T8217375 D5 2.720 1.126 - 0.318 0.238 0.380 2
M10 1.5 T7217426 T6217426 T8217426 D6 2.937 1.240 - 0.381 0.286 0.440 3
M10 1.25 T7217435 T6217435 T8217435 D5 2.937 1.240 - 0.381 0.286 0.440 3
M12 1.75 T7217506 T6217506 T8217506 D6 3.374 1.657 - 0.367 0.275 0.440 3
M12 1.25 T7217525 T6217525 T8217525 D5 3.374 1.657 - 0.367 0.275 0.440 3
M14 2.0 T7217547 T6217547 T8217547 D7 3.594 1.657 - 0.429 0.322 0.500 3
M14 1.5 T7217556 T6217556 T8217556 D6 3.594 1.657 - 0.429 0.322 0.500 3
M16 2.0 T7217607 T6217607 T8217607 D7 3.811 1.811 - 0.480 0.360 0.560 3
M16 1.5 T7217616 T6217616 T8217616 D6 3.811 1.811 - 0.480 0.360 0.560 3
M18 2.5 T7217657 T6217657 T8217657 D7 4.031 1.811 - 0.542 0.406 0.630 3
M20 2.5 T7217707 T6217707 T8217707 D7 4.469 2.000 - 0.652 0.489 0.690 3
