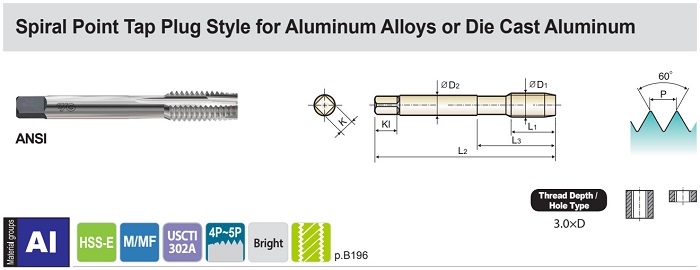

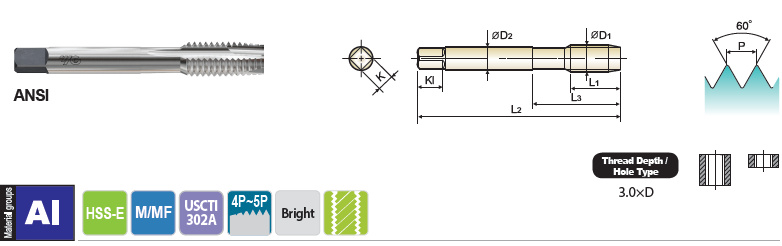

SPIRAL POINT TAPS PLUG STYLE for ALUMINUM ALLOY or DIE CAST ALUMINUM - METRIC

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bright L2 L1 L3 D2 K Kl
M3 0.5 T2K01203 D3 1.937 0.374 0.646 0.141 0.110 0.190 2
M4 0.7 T2K01244 D4 2.126 0.453 0.768 0.168 0.131 0.250 2
M5 0.8 T2K01284 D4 2.374 0.531 0.933 0.194 0.152 0.250 2
M6 1.0 T2K01315 D5 2.500 0.591 1.000 0.255 0.191 0.310 2
M8 1.25 T2K01365 D5 2.720 0.669 1.126 0.318 0.238 0.380 2
M10 1.5 T2K01426 D6 2.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 T2K01435 D5 2.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 T2K01506 D6 3.374 0.984 1.657 0.367 0.275 0.440 3
M12 1.5 T2K01515 D5 3.374 0.984 1.657 0.367 0.275 0.440 3
M12 1.25 T2K01525 D5 3.374 0.984 1.657 0.367 0.275 0.440 3
