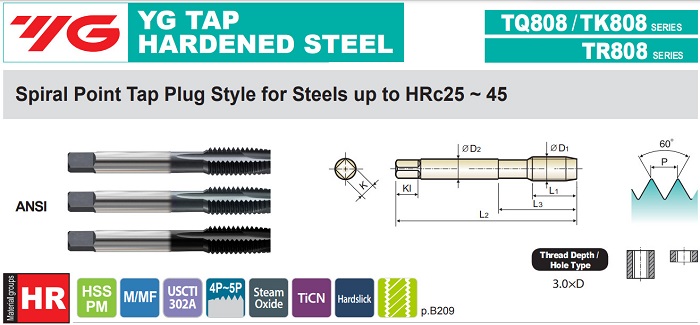

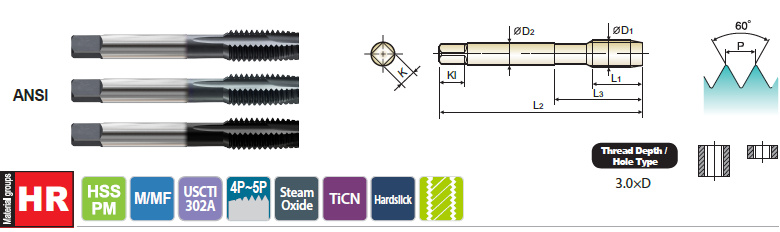

SPIRAL POINT TAPS PLUG STYLE STEELS up to 45HRc - METRIC

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide TiCN Hardslick L2 L1 L3 D2 K KL
M3 0.5 TQ808203 TK808203 TR808203HAR D3 1.937 0.374 0.646 0.141 0.110 0.190 3
M4 0.7 TQ808244 TK808244 TR808244HAR D4 2.126 0.453 0.768 0.168 0.131 0.250 3
M4 0.5 TQ808253 TK808253 TR808253HAR D3 2.126 0.453 0.768 0.168 0.131 0.250 3
M5 0.8 TQ808284 TK808284 TR808284HAR D4 2.374 0.531 0.933 0.194 0.152 0.250 3
M5 0.5 TQ808293 TK808293 TR808293HAR D3 2.374 0.531 0.933 0.194 0.152 0.250 3
M6 1.0 TQ808315 TK808315 TR808315HAR D5 2.500 0.591 1.000 0.255 0.191 0.310 3
M6 0.75 TQ808324 TK808324 TR808324HAR D4 2.500 0.591 1.000 0.255 0.191 0.310 3
M6 0.5 TQ808333 TK808333 TR808333HAR D3 2.500 0.591 1.000 0.255 0.191 0.310 3
M8 1.25 TQ808365 TK808365 TR808365HAR D5 2.720 0.669 1.126 0.318 0.238 0.380 3
M8 1.0 TQ808375 TK808375 TR808375HAR D5 2.720 0.669 1.126 0.318 0.238 0.380 3
M10 1.5 TQ808426 TK808426 TR808426HAR D6 2.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 TQ808435 TK808435 TR808435HAR D5 2.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.0 TQ808445 TK808445 TR808445HAR D5 2.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 TQ808506 TK808506 TR808506HAR D6 3.374 0.984 1.657 0.367 0.275 0.440 3
M12 1.5 TQ808516 TK808516 TR808516HAR D6 3.374 0.984 1.657 0.367 0.275 0.440 3
M12 1.25 TQ808526 TK808526 TR808526HAR D6 3.374 0.984 1.657 0.367 0.275 0.440 3
M12 1.0 TQ808535 TK808535 TR808535HAR D5 3.374 0.984 1.657 0.367 0.275 0.440 3
M14 2.0 TQ808547 TK808547 TR808547HAR D7 3.594 0.984 1.657 0.429 0.322 0.500 3
M14 1.5 TQ808556 TK808556 TR808556HAR D6 3.594 0.984 1.657 0.429 0.322 0.500 3
M16 2.0 TQ808607 TK808607 TR808607HAR D7 3.811 1.083 1.811 0.480 0.360 0.560 3
M16 1.5 TQ808616 TK808616 TR808616HAR D6 3.811 1.083 1.811 0.480 0.360 0.560 3
M18 2.5 TQ808657 TK808657 TR808657HAR D7 4.031 1.083 1.811 0.542 0.406 0.630 3
M18 1.5 TQ808676 TK808676 TR808676HAR D6 4.031 1.083 1.811 0.542 0.406 0.630 3
M20 2.5 TQ808707 TK808707 TR808707HAR D7 4.469 1.201 2.000 0.652 0.489 0.690 3
M20 1.5 TQ808726 TK808726 TR808726HAR D6 4.469 1.201 2.000 0.652 0.489 0.690 3
M22 2.5 TQ808747 TK808747 TR808747HAR D7 4.689 1.339 2.220 0.697 0.523 0.750 3
M22 1.5 TQ808766 TK808766 TR808766HAR D6 4.689 1.339 2.220 0.697 0.523 0.750 3
M24 3.0 TQ808788 TK808788 TR808788HAR D8 4.906 1.339 2.220 0.760 0.570 0.750 4
M24 1.5 TQ808806 TK808806 TR808806HAR D6 4.906 1.339 2.220 0.760 0.570 0.750 4
