Tapping Home > Tapping > METRIC THREAD TAPS > SPIRAL POINTED TAPS

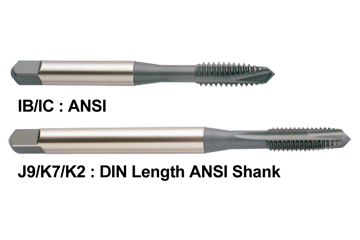

DIN LENGTH ANSI SHANK STEELS < 35Rc

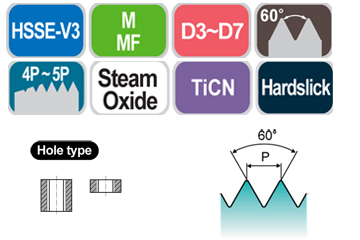

View TAP SELECTOR / CUTTING DATA

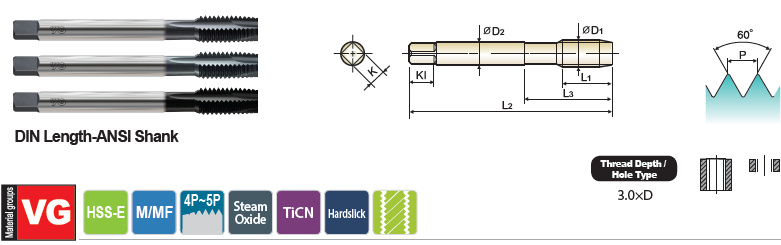

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide TiCN Hardslick L2 L1 L3 D2 K Kl
M3 0.5 J9203 K7203 K2203 D3 2.205 0.374 0.646 0.141 0.110 0.190 3
M3.5 0.6 J9224 K7224 K2224 D4 2.205 0.413 0.709 0.141 0.110 0.190 3
M4 0.7 J9244 K7244 K2244 D4 2.480 0.453 0.768 0.168 0.131 0.250 3
M5 0.8 J9284 K7284 K2284 D4 2.756 0.531 0.933 0.194 0.152 0.250 3
M6 1.0 J9315 K7315 K2315 D5 3.150 0.591 1.000 0.255 0.191 0.310 3
M7 1.0 J9345 K7345 K2345 D5 3.150 0.669 1.126 0.318 0.238 0.380 3
M8 1.25 J9365 K7365 K2365 D5 3.543 0.669 1.126 0.318 0.238 0.380 3
M8 1.0 J9375 K7375 K2375 D5 3.543 0.669 1.126 0.318 0.238 0.380 3
M10 1.5 J9426 K7426 K2426 D6 3.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 J9435 K7435 K2435 D5 3.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 J9506 K7506 K2506 D6 4.331 0.984 1.657 0.367 0.275 0.440 3
M12 1.25 J9525 K7525 K2525 D5 3.937 0.984 1.657 0.367 0.275 0.440 3
M14 2.0 J9547 K7547 K2547 D7 4.331 0.984 1.657 0.429 0.322 0.500 3
M14 1.5 J9556 K7556 K2556 D6 3.937 0.984 1.657 0.429 0.322 0.500 3
M16 2.0 J9607 K7607 K2607 D7 4.331 1.083 1.811 0.480 0.360 0.560 3
M16 1.5 J9616 K7616 K2616 D6 3.937 1.083 1.811 0.480 0.360 0.560 3
M18 2.5 J9657 K7657 K2657 D7 4.921 1.083 1.811 0.542 0.406 0.630 3
M18 1.5 J9676 K7676 K2676 D6 4.331 1.083 1.811 0.542 0.406 0.630 3
