Tapping Home > Tapping > METRIC THREAD TAPS > SPIRAL POINTED TAPS

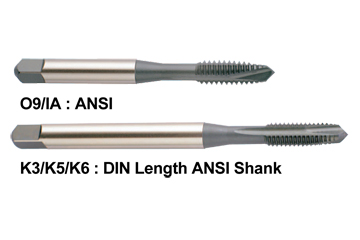

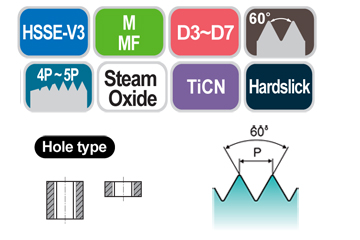

DIN LENGTH ANSI SHANK STAINLESS STEELS < 28Rc
View TAP SELECTOR / CUTTING DATA

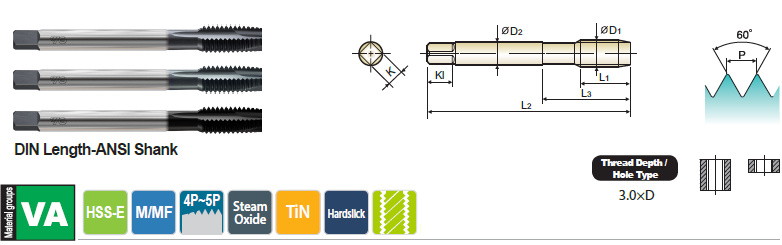

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide TiCN Hardslick L2 L1 L3 D2 K Kl
M3 0.5 K3203 K5203 K6203 D3 2.205 0.374 0.646 0.141 0.110 0.190 3
M3.5 0.6 K3224 K5224 K6224 D4 2.205 0.413 0.709 0.141 0.110 0.190 3
M4 0.7 K3244 K5244 K6244 D4 2.480 0.453 0.768 0.168 0.131 0.250 3
M5 0.8 K3284 K5284 K6284 D4 2.756 0.531 0.933 0.194 0.152 0.250 3
M6 1.0 K3315 K5315 K6315 D5 3.150 0.591 1.000 0.255 0.191 0.310 3
M7 1.0 K3345 K5345 K6345 D5 3.150 0.669 1.126 0.318 0.238 0.380 3
M8 1.25 K3365 K5365 K6365 D5 3.543 0.669 1.126 0.318 0.238 0.380 3
M8 1.0 K3375 K5375 K6375 D5 3.543 0.669 1.126 0.318 0.238 0.380 3
M10 1.5 K3426 K5426 K6426 D6 3.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 K3435 K5435 K6435 D5 3.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 K3506 K5506 K6506 D6 4.331 0.984 1.657 0.367 0.275 0.440 3
M12 1.25 K3525 K5525 K6525 D5 3.937 0.984 1.657 0.367 0.275 0.440 3
M14 2.0 K3547 K5547 K6547 D7 4.331 0.984 1.657 0.429 0.322 0.500 3
M14 1.5 K3556 K5556 K6556 D6 3.937 0.984 1.657 0.429 0.322 0.500 3
M16 2.0 K3607 K5607 K6607 D7 4.331 1.083 1.811 0.480 0.360 0.560 3
M16 1.5 K3616 K5616 K6616 D6 3.937 1.083 1.811 0.480 0.360 0.560 3
M18 2.5 K3657 K5657 K6657 D7 4.921 1.083 1.811 0.542 0.406 0.630 3
M18 1.5 K3676 K5676 K6676 D6 4.331 1.083 1.811 0.542 0.406 0.630 3
