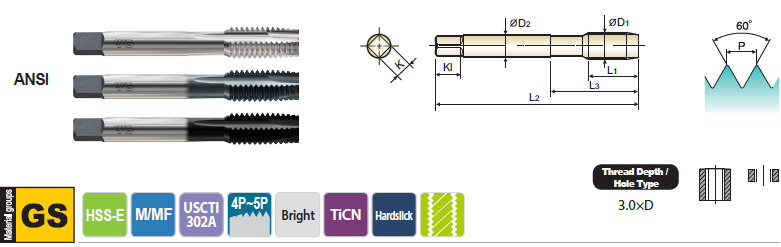

Spiral Point Tap Plug Style for General Purpose - L7 / L8 / L9 SERIES
View TAP SELECTOR / CUTTING DATA

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bright TiCN Hardslick L2 L1 L3 D2 K KI
M3 0.5 L7203 L8203 L9203 D3 1.937 0.311 0.646 0.141 0.110 0.190 2
M3.5 0.6 L7224 L8224 L9224 D4 2.000 0.374 0.709 0.141 0.110 0.190 2
M4 0.7 L7244 L8244 L9244 D4 2.126 0.374 0.768 0.168 0.131 0.250 2
M5 0.8 L7284 L8284 L9284 D4 2.374 0.500 0.933 0.194 0.152 0.250 2
M6 1.0 L7315 L8315 L9315 D5 2.500 0.626 1.000 0.255 0.191 0.310 3
M7 1.0 L7345 L8345 L9345 D5 2.720 0.689 1.126 0.318 0.238 0.380 3
M8 1.25 L7365 L8365 L9365 D5 2.720 0.689 1.126 0.318 0.238 0.380 3
M8 1.0 L7375 L8375 L9375 D5 2.720 0.689 1.126 0.318 0.238 0.380 3
M10 1.5 L7426 L8426 L9426 D6 2.937 0.748 1.252 0.381 0.286 0.440 3
M10 1.25 L7435 L8435 L9435 D5 2.937 0.748 1.252 0.381 0.286 0.440 3
M12 1.75 L7506 L8506 L9506 D6 3.374 0.937 1.594 0.367 0.275 0.440 3
M12 1.25 L7525 L8525 L9525 D5 3.374 0.937 1.594 0.367 0.275 0.440 3
