Tapping Home > Tapping > METRIC THREAD TAPS > SPIRAL FLUTED TAPS

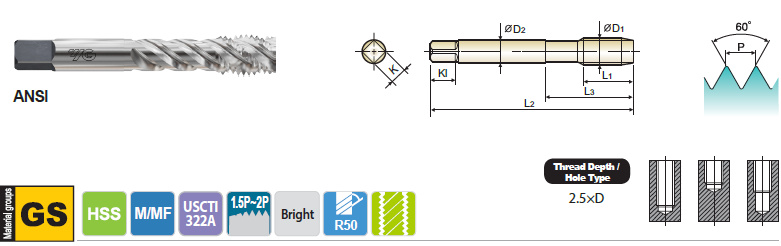

SPIRAL FLUTE TAPS SCREW THREAD INSERT for GENERAL PURPOSE - METRIC

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bright L2 L1 L3 D2 K Kl
M2 0.4 T7425132 D2 1.811 0.236 0.563 0.141 0.110 0.190 2
M2.5 0.45 T7425172 D2 2.083 0.197 0.646 0.141 0.110 0.190 2
M3 0.5 T7425202 D2 2.000 0.276 0.709 0.141 0.110 0.190 3
M4 0.7 T7425243 D3 2.374 0.354 0.933 0.194 0.152 0.250 3
M5 0.8 T7425283 D3 2.500 0.433 1.000 0.255 0.191 0.310 3
M6 1.0 T7425313 D3 2.720 0.433 1.126 0.318 0.238 0.380 3
M8 1.25 T7425363 D3 2.937 0.512 1.252 0.381 0.286 0.440 3
M10 1.5 T7425424 D4 3.374 0.591 2.067 0.367 0.275 0.440 3
M12 1.75 T7425504 D4 3.594 0.709 2.067 0.429 0.322 0.500 3
