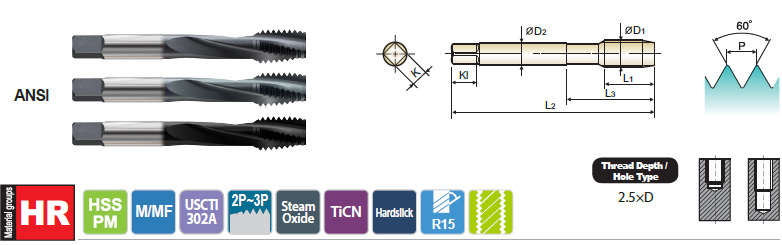

SPIRAL FLUTE TAPS MODIFIED BOTTOMING STYLE STEEL up to 45HRc

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide TiCN Hardslick L2 L1 L3 D2 K KI
M3 0.5 TQ858203 TK858203 TR858203HAR D3 1.937 0.197 0.646 0.141 0.110 0.190 3
M4 0.7 TQ858244 TK858244 TR858244HAR D4 2.126 0.276 0.768 0.168 0.131 0.250 3
M4 0.5 TQ858253 TK858253 TR858253HAR D3 2.126 0.276 0.768 0.168 0.131 0.250 3
M5 0.8 TQ858284 TK858284 TR858284HAR D4 2.374 0.354 0.933 0.194 0.152 0.250 3
M5 0.5 TQ858293 TK858293 TR858293HAR D3 2.374 0.354 0.933 0.194 0.152 0.250 3
M6 1.0 TQ858315 TK858315 TR858315HAR D5 2.500 0.433 1.000 0.255 0.191 0.310 3
M6 0.75 TQ858324 TK858324 TR858324HAR D4 2.500 0.433 1.000 0.255 0.191 0.310 3
M6 0.5 TQ858333 TK858333 TR858333HAR D3 2.500 0.433 1.000 0.255 0.191 0.310 3
M8 1.25 TQ858365 TK858365 TR858365HAR D5 2.720 0.472 1.126 0.318 0.238 0.380 3
M8 1.0 TQ858375 TK858375 TR858375HAR D5 2.720 0.433 1.126 0.318 0.238 0.380 3
M10 1.5 TQ858426 TK858426 TR858426HAR D6 2.937 0.512 1.252 0.381 0.286 0.440 3
M10 1.25 TQ858435 TK858435 TR858435HAR D5 2.937 0.472 1.252 0.381 0.286 0.440 3
M10 1.0 TQ858445 TK858445 TR858445HAR D5 2.937 0.433 1.252 0.381 0.286 0.440 3
M12 1.75 TQ858506 TK858506 TR858506HAR D6 3.374 0.591 2.067 0.367 0.275 0.440 3
M12 1.5 TQ858516 TK858516 TR858516HAR D6 3.374 0.591 2.067 0.367 0.275 0.440 3
M12 1.25 TQ858526 TK858526 TR858526HAR D6 3.374 0.551 2.067 0.367 0.275 0.440 3
M12 1.0 TQ858535 TK858535 TR858535HAR D5 3.374 0.551 2.067 0.367 0.275 0.440 3
M14 2.0 TQ858547 TK858547 TR858547HAR D7 3.594 0.709 2.067 0.429 0.322 0.500 3
M14 1.5 TQ858556 TK858556 TR858556HAR D6 3.594 0.551 2.067 0.429 0.322 0.500 3
M16 2.0 TQ858607 TK858607 TR858607HAR D7 3.811 0.709 2.205 0.480 0.360 0.560 4
M16 1.5 TQ858616 TK858616 TR858616HAR D6 3.811 0.551 2.205 0.480 0.360 0.560 4
M18 2.5 TQ858657 TK858657 TR858657HAR D7 4.031 0.787 2.205 0.542 0.406 0.630 4
M18 1.5 TQ858676 TK858676 TR858676HAR D6 4.031 0.551 2.205 0.542 0.406 0.630 4
M20 2.5 TQ858707 TK858707 TR858707HAR D7 4.469 0.787 2.480 0.652 0.489 0.690 4
M20 1.5 TQ858726 TK858726 TR858726HAR D6 4.469 0.551 2.480 0.652 0.489 0.690 4
M22 2.5 TQ858747 TK858747 TR858747HAR D7 4.689 0.787 2.815 0.697 0.523 0.750 4
M22 1.5 TQ858766 TK858766 TR858766HAR D6 4.689 0.551 2.815 0.697 0.523 0.750 4
M24 3.0 TQ858788 TK858788 TR858788HAR D8 4.906 0.945 2.815 0.760 0.570 0.750 4
M24 1.5 TQ858806 TK858806 TR858806HAR D6 4.906 0.551 2.815 0.760 0.570 0.750 4
