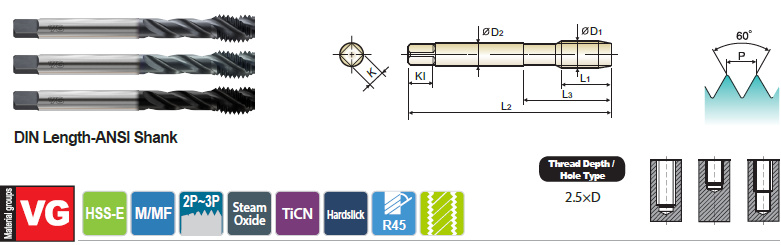

Tapping Home > Tapping > METRIC THREAD TAPS > SPIRAL FLUTED TAPS
DIN LENGTH ANSI SHANK STEELS < 35Rc
View TAP SELECTOR / CUTTING DATA

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Steam Oxide TiCN Hardslick L2 L1 L3 D2 K Kl
M3 0.5 E2203 E4203 E5203 D3 2.205 0.197 0.646 0.141 0.110 0.190 3
M3.5 0.6 E2224 E4224 E5224 D4 2.205 0.276 0.709 0.141 0.110 0.190 3
M4 0.7 E2244 E4244 E5244 D4 2.480 0.276 0.768 0.168 0.131 0.250 3
M5 0.8 E2284 E4284 E5284 D4 2.756 0.354 0.933 0.194 0.152 0.250 3
M6 1.0 E2315 E4315 E5315 D5 3.150 0.433 1.000 0.255 0.191 0.310 3
M7 1.0 E2345 E4345 E5345 D5 3.150 0.433 1.126 0.318 0.238 0.380 3
M8 1.25 E2365 E4365 E5365 D5 3.543 0.472 1.126 0.318 0.238 0.380 3
M8 1.0 E2375 E4375 E5375 D5 3.543 0.433 1.126 0.318 0.238 0.380 3
M10 1.5 E2426 E4426 E5426 D6 3.937 0.512 1.252 0.381 0.286 0.440 3
M10 1.25 E2435 E4435 E5435 D5 3.937 0.472 1.252 0.381 0.286 0.440 3
M12 1.75 E2506 E4506 E5506 D6 4.331 0.591 2.067 0.367 0.275 0.440 3
M12 1.25 E2525 E4525 E5525 D5 3.937 0.551 2.067 0.367 0.275 0.440 3
M14 2.0 E2547 E4547 E5547 D7 4.331 0.709 2.067 0.429 0.322 0.500 3
M14 1.5 E2556 E4556 E5556 D6 3.937 0.551 2.067 0.429 0.322 0.500 3
M16 2.0 E2607 E4607 E5607 D7 4.331 0.709 2.205 0.480 0.360 0.560 3
M16 1.5 E2616 E4616 E5616 D6 3.937 0.551 2.205 0.480 0.360 0.560 3
M18 2.5 E2657 E4657 E5657 D7 4.921 0.787 2.205 0.542 0.406 0.630 4
M18 1.5 E2676 E4676 E5676 D6 4.331 0.551 2.205 0.542 0.406 0.630 4
