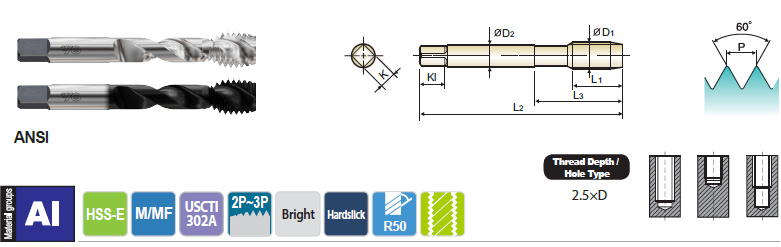

SPIRAL FLUTE TAPS MODIFIED BOTTOMING STYLE for ALUMINUM ALLOYS or DIE CAST ALUMINUM-METRIC
View TAP SELECTOR / CUTTING DATA

Size Pitch EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P Bright Hardslick L2 L1 L3 D2 K Kl
M3 0.5 BW203 BX203 D3 1.937 0.197 0.646 0.141 0.110 0.190 2
M4 0.7 BW244 BX244 D4 2.126 0.276 0.768 0.168 0.131 0.250 2
M5 0.8 BW285 BX285 D5 2.374 0.354 0.933 0.194 0.152 0.250 2
M6 1.0 BW315 BX315 D5 2.500 0.433 1.000 0.255 0.191 0.310 2
M8 1.25 BW365 BX365 D5 2.720 0.472 1.126 0.318 0.238 0.380 2
M10 1.5 BW426 BX426 D6 2.937 0.512 1.252 0.381 0.286 0.440 2
M10 1.25 BW435 BX435 D5 2.937 0.472 1.252 0.381 0.286 0.440 2
M12 1.75 BW506 BX506 D6 3.374 0.591 2.067 0.367 0.275 0.440 2
M12 1.5 BW515 BX515 D5 3.374 0.591 2.067 0.367 0.275 0.440 2
M12 1.25 BW525 BX525 D5 3.374 0.551 2.067 0.367 0.275 0.440 2
