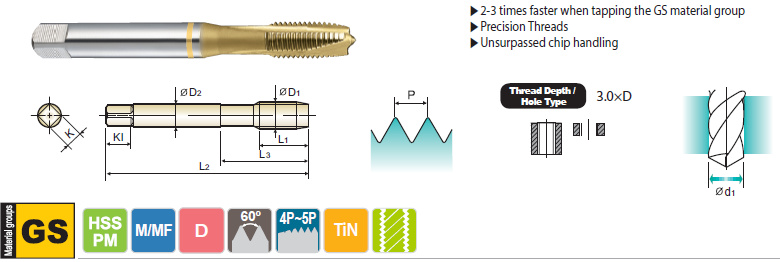

Spiral Point Tap for High Speed Tapping - TTS62 SERIES

Size Pitch EDP No. Limit Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 P TiN L1 L2 L3 D2 K Kl Z
M3 0.5 TTS62203 D3 0.197 1.94 0.646 0.141 0.110 0.190 3
M4 0.7 TTS62244 D4 0.276 2.13 0.768 0.168 0.131 0.250 3
M5 0.8 TTS62284 D4 0.315 2.38 0.933 0.194 0.152 0.250 3
M6 1.0 TTS62315 D5 0.394 2.50 1.000 0.255 0.191 0.310 3
M8 1.25 TTS62365 D5 0.512 2.72 1.126 0.318 0.238 0.380 3
M8 1.0 TTS62375 D5 0.394 2.72 1.126 0.318 0.238 0.380 3
M10 1.5 TTS62426 D6 0.591 2.94 1.252 0.381 0.286 0.440 3
M10 1.25 TTS62435 D5 0.512 2.94 1.252 0.381 0.286 0.440 3
M12 1.75 TTS62506 D6 0.709 3.38 2.067 0.367 0.275 0.440 4
M12 1.25 TTS62525 D5 0.512 3.38 2.067 0.367 0.275 0.440 4
M14 2.0 TTS62547 D7 0.787 3.59 2.067 0.429 0.322 0.500 4
M14 1.5 TTS62556 D6 0.591 3.59 2.067 0.429 0.322 0.500 4
M16 2.0 TTS62607 D7 0.787 3.81 2.205 0.480 0.360 0.560 4
M16 1.5 TTS21616 D6 0.591 3.81 2.205 0.480 0.360 0.560 4
M18 2.5 TTS62657 D7 0.984 4.03 2.205 0.542 0.406 0.630 4
M18 1.5 TTS62676 D6 0.591 4.03 2.205 0.542 0.406 0.630 4
M20 2.5 TTS62707 D7 0.984 4.47 2.480 0.652 0.489 0.690 4
M20 1.5 TTS62726 D6 0.591 4.47 2.480 0.652 0.489 0.690 4
