| Description |
Description |
Decimal |
mm |
HSS-Co5% |
HSS |
|
|
|
|
EDP No. |
EDP No. |
| 5/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.0781 | 2.00 | DL601005 | D1631005 |
| 3/32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.0938 | 2.40 | DL601006 | D1631006 |
| 7/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1094 | 2.80 | DL601007 | D1631007 |
| 1/8 Aircraft Extension Drill 135 Split Point | 6" Length | 0.125 | 3.20 | DL601008 | D1631008 |
| 9/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1406 | 3.60 | DL601009 | D1631009 |
| 5/32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1562 | 4.00 | DL601010 | D1631010 |
| 11/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1719 | 4.40 | DL601011 | D1631011 |
| 3/16 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1875 | 4.80 | DL601012 | D1631012 |
| 13/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.2031 | 5.20 | DL601013 | D1631013 |
| 7/32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.2188 | 5.60 | DL601014 | D1631014 |
| 15/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.2344 | 6.00 | DL601015 | D1631015 |
| 1/4 Aircraft Extension Drill 135 Split Point | 6" Length | 0.25 | 6.40 | DL601016 | D1631016 |
| 17/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.2656 | 6.70 | DL601017 | D1631017 |
| 9/32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.2813 | 7.10 | DL601018 | D1631018 |
| 19/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.2969 | 7.50 | DL601019 | D1631019 |
| 5/16 Aircraft Extension Drill 135 Split Point | 6" Length | 0.3125 | 7.90 | DL601020 | D1631020 |
| 21/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.3281 | 8.30 | DL601021 | D1631021 |
| 11/32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.3438 | 8.70 | DL601022 | D1631022 |
| 23/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.3594 | 9.10 | DL601023 | D1631023 |
| 3/8 Aircraft Extension Drill 135 Split Point | 6" Length | 0.375 | 9.50 | DL601024 | D1631024 |
| 25/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.3906 | 9.90 | DL601025 | D1631025 |
| 13/32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.4063 | 10.30 | DL601026 | D1631026 |
| 27/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.4219 | 10.70 | DL601027 | D1631027 |
| 7/16 Aircraft Extension Drill 135 Split Point | 6" Length | 0.4375 | 11.10 | DL601028 | D1631028 |
| 29/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.4531 | 11.50 | DL601029 | D1631029 |
| 15/32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.4688 | 11.90 | DL601030 | D1631030 |
| 31/64 Aircraft Extension Drill 135 Split Point | 6" Length | 0.4844 | 12.30 | DL601031 | D1631031 |
| 1/2 Aircraft Extension Drill 135 Split Point | 6" Length | 0.5 | 12.70 | DL601032 | D1631032 |
| A Aircraft Extension Drill 135 Split Point | 6" Length | 0.234 | 5.90 | DL602101 | D1632101 |
| B Aircraft Extension Drill 135 Split Point | 6" Length | 0.238 | 6.00 | DL602102 | D1632102 |
| C Aircraft Extension Drill 135 Split Point | 6" Length | 0.242 | 6.10 | DL602103 | D1632103 |
| D Aircraft Extension Drill 135 Split Point | 6" Length | 0.246 | 6.20 | DL602104 | D1632104 |
| E Aircraft Extension Drill 135 Split Point | 6" Length | 0.25 | 6.40 | DL602105 | D1632105 |
| F Aircraft Extension Drill 135 Split Point | 6" Length | 0.257 | 6.50 | DL602106 | D1632106 |
| G Aircraft Extension Drill 135 Split Point | 6" Length | 0.261 | 6.60 | DL602107 | D1632107 |
| H Aircraft Extension Drill 135 Split Point | 6" Length | 0.266 | 6.80 | DL602108 | D1632108 |
| I Aircraft Extension Drill 135 Split Point | 6" Length | 0.272 | 6.90 | DL602109 | D1632109 |
| J Aircraft Extension Drill 135 Split Point | 6" Length | 0.277 | 7.00 | DL602110 | D1632110 |
| K Aircraft Extension Drill 135 Split Point | 6" Length | 0.281 | 7.10 | DL602111 | D1632111 |
| L Aircraft Extension Drill 135 Split Point | 6" Length | 0.29 | 7.40 | DL602112 | D1632112 |
| M Aircraft Extension Drill 135 Split Point | 6" Length | 0.295 | 7.50 | DL602113 | D1632113 |
| N Aircraft Extension Drill 135 Split Point | 6" Length | 0.302 | 7.70 | DL602114 | D1632114 |
| O Aircraft Extension Drill 135 Split Point | 6" Length | 0.316 | 8.00 | DL602115 | D1632115 |
| P Aircraft Extension Drill 135 Split Point | 6" Length | 0.323 | 8.20 | DL602116 | D1632116 |
| Q Aircraft Extension Drill 135 Split Point | 6" Length | 0.332 | 8.40 | DL602117 | D1632117 |
| R Aircraft Extension Drill 135 Split Point | 6" Length | 0.339 | 8.60 | DL602118 | D1632118 |
| S Aircraft Extension Drill 135 Split Point | 6" Length | 0.348 | 8.80 | DL602119 | D1632119 |
| T Aircraft Extension Drill 135 Split Point | 6" Length | 0.358 | 9.10 | DL602120 | D1632120 |
| U Aircraft Extension Drill 135 Split Point | 6" Length | 0.368 | 9.30 | DL602121 | D1632121 |
| V Aircraft Ext. HSS 135 Split Point | 6" Length | 0.377 | 9.60 | DL602122 | D1632122 |
| W Aircraft Ext. HSS 135 Split Point | 6" Length | 0.386 | 9.80 | DL602123 | D1632123 |
| X Aircraft Ext. HSS 135 Split Point | 6" Length | 0.397 | 10.10 | DL602124 | D1632124 |
| Y Aircraft Ext. HSS 135 Split Point | 6" Length | 0.404 | 10.30 | DL602125 | D1632125 |
| Z Aircraft Ext. HSS 135 Split Point | 6" Length | 0.413 | 10.50 | DL602126 | D1632126 |
| #1 Aircraft Extension Drill 135 Split Point | 6" Length | 0.228 | 5.80 | DL603256 | D1633256 |
| #2 Aircraft Extension Drill 135 Split Point | 6" Length | 0.221 | 5.60 | DL603255 | D1633255 |
| #3 Aircraft Extension Drill 135 Split Point | 6" Length | 0.213 | 5.40 | DL603254 | D1633254 |
| #4 Aircraft Extension Drill 135 Split Point | 6" Length | 0.209 | 5.30 | DL603253 | D1633253 |
| #5 Aircraft Extension Drill 135 Split Point | 6" Length | 0.2055 | 5.20 | DL603252 | D1633252 |
| #6 Aircraft Extension Drill 135 Split Point | 6" Length | 0.204 | 5.20 | DL603251 | D1633251 |
| #7 Aircraft Extension Drill 135 Split Point | 6" Length | 0.201 | 5.10 | DL603250 | D1633250 |
| #8 Aircraft Extension Drill 135 Split Point | 6" Length | 0.199 | 5.10 | DL603249 | D1633249 |
| #9 Aircraft Extension Drill 135 Split Point | 6" Length | 0.196 | 5.00 | DL603248 | D1633248 |
| #10 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1935 | 4.90 | DL603247 | D1633247 |
| #11 Aircraft Extension Drill 135 Split Point | 6" Length | 0.191 | 4.90 | DL603246 | D1633246 |
| #12 Aircraft Extension Drill 135 Split Point | 6" Length | 0.189 | 4.80 | DL603245 | D1633245 |
| #13 Aircraft Extension Drill 135 Split Point | 6" Length | 0.185 | 4.70 | DL603244 | D1633244 |
| #14 Aircraft Extension Drill 135 Split Point | 6" Length | 0.182 | 4.60 | DL603243 | D1633243 |
| #15 Aircraft Extension Drill 135 Split Point | 6" Length | 0.18 | 4.60 | DL603242 | D1633242 |
| #16 Aircraft Extension Drill 135 Split Point | 6" Length | 0.177 | 4.50 | DL603241 | D1633241 |
| #17 Aircraft Extension Drill 135 Split Point | 6" Length | 0.173 | 4.40 | DL603240 | D1633240 |
| #18 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1695 | 4.30 | DL603239 | D1633239 |
| #19 Aircraft Extension Drill 135 Split Point | 6" Length | 0.166 | 4.20 | DL603238 | D1633238 |
| #20 Aircraft Extension Drill 135 Split Point | 6" Length | 0.161 | 4.10 | DL603237 | D1633237 |
| #21 Aircraft Extension Drill 135 Split Point | 6" Length | 0.159 | 4.00 | DL603236 | D1633236 |
| #22 Aircraft Extension Drill 135 Split Point | 6" Length | 0.157 | 4.00 | DL603235 | D1633235 |
| #23 Aircraft Extension Drill 135 Split Point | 6" Length | 0.154 | 3.90 | DL603234 | D1633234 |
| #24 Aircraft Extension Drill 135 Split Point | 6" Length | 0.152 | 3.90 | DL603233 | D1633233 |
| #25 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1495 | 3.80 | DL603232 | D1633232 |
| #26 Aircraft Extension Drill 135 Split Point | 6" Length | 0.147 | 3.70 | DL603231 | D1633231 |
| #27 Aircraft Extension Drill 135 Split Point | 6" Length | 0.144 | 3.70 | DL603230 | D1633230 |
| #28 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1405 | 3.60 | DL603229 | D1633229 |
| #29 Aircraft Extension Drill 135 Split Point | 6" Length | 0.136 | 3.50 | DL603228 | D1633228 |
| #30 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1285 | 3.30 | DL603227 | D1633227 |
| #31 Aircraft Extension Drill 135 Split Point | 6" Length | 0.12 | 3.00 | DL603226 | D1633226 |
| #32 Aircraft Extension Drill 135 Split Point | 6" Length | 0.116 | 2.90 | DL603225 | D1633225 |
| #33 Aircraft Extension Drill 135 Split Point | 6" Length | 0.113 | 2.90 | DL603224 | D1633224 |
| #34 Aircraft Extension Drill 135 Split Point | 6" Length | 0.111 | 2.80 | DL603223 | D1633223 |
| #35 Aircraft Extension Drill 135 Split Point | 6" Length | 0.11 | 2.80 | DL603222 | D1633222 |
| #36 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1065 | 2.70 | DL603221 | D1633221 |
| #37 Aircraft Extension Drill 135 Split Point | 6" Length | 0.104 | 2.60 | DL603220 | D1633220 |
| #38 Aircraft Extension Drill 135 Split Point | 6" Length | 0.1015 | 2.60 | DL603219 | D1633219 |
| #39 Aircraft Extension Drill 135 Split Point | 6" Length | 0.0995 | 2.50 | DL603218 | D1633218 |
| #40 Aircraft Extension Drill 135 Split Point | 6" Length | 0.098 | 2.50 | DL603217 | D1633217 |
| #41 Aircraft Extension Drill 135 Split Point | 6" Length | 0.096 | 2.40 | DL603216 | D1633216 |
| #42 Aircraft Extension Drill 135 Split Point | 6" Length | 0.0935 | 2.40 | DL603215 | D1633215 |
| #43 Aircraft Extension Drill 135 Split Point | 6" Length | 0.089 | 2.30 | DL603214 | D1633214 |
| 7/32 Aircraft Extension Drill 135 Split Point | 12" Length | 0.2188 | 5.60 | DL604014 | D1634014 |
| 15/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.2344 | 6.00 | DL604015 | D1634015 |
| 1/4 Aircraft Extension Drill 135 Split Point | 12" Length | 0.25 | 6.40 | DL604016 | D1634016 |
| 17/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.2656 | 6.70 | DL604017 | D1634017 |
| 9/32 Aircraft Extension Drill 135 Split Point | 12" Length | 0.2813 | 7.10 | DL604018 | D1634018 |
| 19/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.2969 | 7.50 | DL604019 | D1634019 |
| 5/16 Aircraft Extension Drill 135 Split Point | 12" Length | 0.3125 | 7.90 | DL604020 | D1634020 |
| 21/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.3281 | 8.30 | DL604021 | D1634021 |
| 11/32 Aircraft Extension Drill 135 Split Point | 12" Length | 0.3438 | 8.70 | DL604022 | D1634022 |
| 23/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.3594 | 9.10 | DL604023 | D1634023 |
| 3/8 Aircraft Extension Drill 135 Split Point | 12" Length | 0.375 | 9.50 | DL604024 | D1634024 |
| 25/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.3906 | 9.90 | DL604025 | D1634025 |
| 13/32 Aircraft Extension Drill 135 Split Point | 12" Length | 0.4063 | 10.30 | DL604026 | D1634026 |
| 27/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.4219 | 10.70 | DL604027 | D1634027 |
| 7/16 Aircraft Extension Drill 135 Split Point | 12" Length | 0.4375 | 11.10 | DL604028 | D1634028 |
| 29/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.4531 | 11.50 | DL604029 | D1634029 |
| 15/32 Aircraft Extension Drill 135 Split Point | 12" Length | 0.4688 | 11.90 | DL604030 | D1634030 |
| 31/64 Aircraft Extension Drill 135 Split Point | 12" Length | 0.4844 | 12.30 | DL604031 | D1634031 |
| 1/2 Aircraft Extension Drill 135 Split Point | 12" Length | 0.5 | 12.70 | DL604032 | D1634032 |
| A Aircraft Extension Drill 135 Split Point | 12" Length | 0.234 | 5.90 | DL605101 | D1635101 |
| B Aircraft Extension Drill 135 Split Point | 12" Length | 0.238 | 6.00 | DL605102 | D1635102 |
| C Aircraft Extension Drill 135 Split Point | 12" Length | 0.242 | 6.10 | DL605103 | D1635103 |
| D Aircraft Extension Drill 135 Split Point | 12" Length | 0.246 | 6.20 | DL605104 | D1635104 |
| E Aircraft Extension Drill 135 Split Point | 12" Length | 0.25 | 6.40 | DL605105 | D1635105 |
| F Aircraft Extension Drill 135 Split Point | 12" Length | 0.257 | 6.50 | DL605106 | D1635106 |
| G Aircraft Extension Drill 135 Split Point | 12" Length | 0.261 | 6.60 | DL605107 | D1635107 |
| H Aircraft Extension Drill 135 Split Point | 12" Length | 0.266 | 6.80 | DL605108 | D1635108 |
| I Aircraft Extension Drill 135 Split Point | 12" Length | 0.272 | 6.90 | DL605109 | D1635109 |
| J Aircraft Extension Drill 135 Split Point | 12" Length | 0.277 | 7.00 | DL605110 | D1635110 |
| K Aircraft Extension Drill 135 Split Point | 12" Length | 0.281 | 7.10 | DL605111 | D1635111 |
| L Aircraft Extension Drill 135 Split Point | 12" Length | 0.29 | 7.40 | DL605112 | D1635112 |
| M Aircraft Extension Drill 135 Split Point | 12" Length | 0.295 | 7.50 | DL605113 | D1635113 |
| N Aircraft Extension Drill 135 Split Point | 12" Length | 0.302 | 7.70 | DL605114 | D1635114 |
| O Aircraft Extension Drill 135 Split Point | 12" Length | 0.316 | 8.00 | DL605115 | D1635115 |
| P Aircraft Extension Drill 135 Split Point | 12" Length | 0.323 | 8.20 | DL605116 | D1635116 |
| Q Aircraft Extension Drill 135 Split Point | 12" Length | 0.332 | 8.40 | DL605117 | D1635117 |
| R Aircraft Extension Drill 135 Split Point | 12" Length | 0.339 | 8.60 | DL605118 | D1635118 |
| S Aircraft Extension Drill 135 Split Point | 12" Length | 0.348 | 8.80 | DL605119 | D1635119 |
| T Aircraft Extension Drill 135 Split Point | 12" Length | 0.358 | 9.10 | DL605120 | D1635120 |
| U Aircraft Extension Drill 135 Split Point | 12" Length | 0.368 | 9.30 | DL605121 | D1635121 |
| V Aircraft Extension. HSS 135 Split Point | 12" Length | 0.377 | 9.60 | DL605122 | D1635122 |
| W Aircraft Extension. HSS 135 Split Point | 12" Length | 0.386 | 9.80 | DL605123 | D1635123 |
| X Aircraft Extension. HSS 135 Split Point | 12" Length | 0.397 | 10.10 | DL605124 | D1635124 |
| Y Aircraft Extension. HSS 135 Split Point | 12" Length | 0.404 | 10.30 | DL605125 | D1635125 |
| Z Aircraft Extension. HSS 135 Split Point | 12" Length | 0.413 | 10.50 | DL605126 | D1635126 |
| #1 Aircraft Extension Drill 135 Split Point | 12" Length | 0.228 | 5.80 | DL606256 | D1636256 |
| #3 Aircraft Extension Drill 135 Split Point | 12" Length | 0.213 | 5.40 | DL606254 | D1636254 |

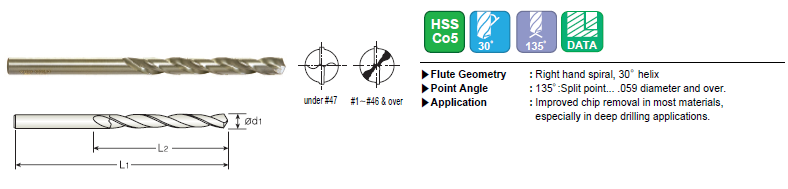

Aircraft Extension Drills HSS & COBALT, 135 Degree Split Point
