Drilling	Home > Drilling > SCREW MACHINE DRILL

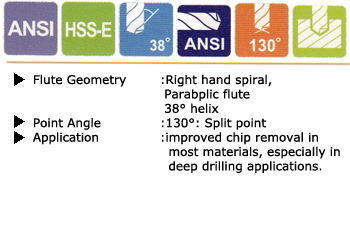

HSS-Co5% SCREW MACHINE DRILL PARABOLIC FLUTE - FRACTIONAL AND LETTERS

HSS-Co5% Screw Machine Drill Parabolic Flute- Fractional and Letters

Diameter		Flute	Overall	EDP NO
Fractional	Decimal	Length	Length	EDP NO
3/32	0.0938	3/4	1-3/4	DN514006
7/64	0.1094	13/16	1-13/16	DN514007
1/8	0.1250	7/8	1-7/8	DN514008
9/64	0.1406	15/16	1-15/16	DN514009
5/32	0.1563	1	2-1/16	DN514010
11/64	0.1719	1-1/16	2-1/8	DN514011
3/16	0.1875	1-1/8	2-3/16	DN514012
13/64	0.2031	1-3/16	2-1/4	DN514013
7/32	0.2188	1-1/4	2-3/8	DN514014
15/64	0.2344	1-5/16	2-7/16	DN514015
1/4	0.2500	1-3/8	2-1/2	DN514016
17/64	0.2656	1-7/16	2-5/8	DN514017
9/32	0.2813	1-1/2	2-11/16	DN514018
19/64	0.2969	1-9/16	2-3/4	DN514019
5/16	0.3125	1-5/8	2-13/16	DN514020
21/64	0.3281	1-11/16	2-15/16	DN514021
11/32	0.3438	1-11/16	3	DN514022
23/64	0.3594	1-3/4	3-1/16	DN514023
3/8	0.3750	1-13/16	3-1/8	DN514024
25/64	0.3906	1-7/8	3-1/4	DN514025
13/32	0.4063	1-15/16	3-5/16	DN514026
27/64	0.4219	2	3-3/8	DN514027
7/16	0.4375	2-1/16	3-7/16	DN514028
29/64	0.4531	2-1/8	3-9/16	DN514029
15/32	0.4688	2-1/8	3-5/8	DN514030
31/64	0.4844	2-3/16	3-11/16	DN514031
1/2	0.5000	2-1/4	3-3/4	DN514032

A	0.2340	1-5/16	2-7/16	DN516101
B	0.2380	1-3/8	2-1/2	DN516102
C	0.2420	1-3/8	2-1/2	DN516103
D	0.2460	1-3/8	2-1/2	DN516104
E	0.2500	1-3/8	2-1/2	DN516105
F	0.2570	1-7/16	2-5/8	DN516106
G	0.2610	1-7/16	2-5/8	DN516107
H	0.2660	1-1/2	2-11/16	DN516108
I	0.2720	1-1/2	2-11/16	DN516109
J	0.2770	1-1/2	2-11/16	DN516110
K	0.2810	1-1/2	2-11/16	DN516111
L	0.2900	1-9/16	2-3/4	DN516112
M	0.2950	1-9/16	2-3/4	DN516113
N	0.3020	1-5/8	2-13/16	DN516114
O	0.3160	1-11/16	2-15/16	DN516115
P	0.3230	1-11/16	2-15/16	DN516116
Q	0.3320	1-11/16	3	DN516117
R	0.3390	1-11/16	3	DN516118
S	0.3480	1-3/4	3-1/16	DN516119
T	0.3580	1-3/4	3-1/16	DN516120
U	0.3680	1-13/16	3-1/8	DN516121
V	0.3770	1-7/8	3-1/4	DN516122
W	0.3860	1-7/8	3-1/4	DN516123
X	0.3970	1-15/16	3-5/16	DN516124
Y	0.4040	1-15/16	3-5/16	DN516125
Z	0.4130	2	3-3/8	DN516126
