Drilling Home > Drilling > GOLD-P DRILLS

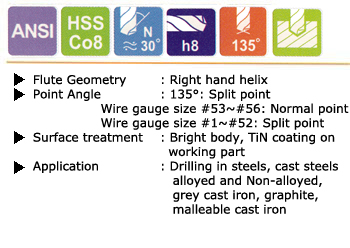

HSS-Co8% STRAIGHT SHANK JOBBER LENGTH - WIRE GUAGE D2GP187
 Wire Guage Size / HSS-Co8% Gold-P Coated (ANSI)
Wire Diameter LOC OAL EDP NO.
1 .2280 2 5/8 3 7/8 D2GP187256
2 .2210 2 5/8 3 7/8 D2GP187255
3 .2130 2 1/2 3 3/4 D2GP187254
4 .2090 2 1/2 3 3/4 D2GP187253
5 .2055 2 1/2 3 3/4 D2GP187252
6 .2040 2 1/2 3 3/4 D2GP187251
7 .2010 2 7/16 3 5/8 D2GP187250
8 .1990 2 7/16 3 5/8 D2GP187249
9 .1960 2 7/16 3 5/8 D2GP187248
10 .1935 2 7/16 3 5/8 D2GP187247
11 .1910 2 5/16 3 1/2 D2GP187246
12 .1890 2 5/16 3 1/2 D2GP187245
13 .1850 2 5/16 3 1/2 D2GP187244
14 .1820 2 3/16 3 3/8 D2GP187243
15 .1800 2 3/16 3 3/8 D2GP187242
16 .1770 2 3/16 3 3/8 D2GP187241
17 .1730 2 3/16 3 3/8 D2GP187240
18 .1695 2 1/8 3 1/4 D2GP187239
19 .1660 2 1/8 3 1/4 D2GP187238
20 .1610 2 1/8 3 1/4 D2GP187237
21 .1590 2 1/8 3 1/4 D2GP187236
22 .1570 2 3 1/8 D2GP187235
23 .1540 2 3 1/8 D2GP187234
24 .1520 2 3 1/8 D2GP187233
25 .1495 1 7/8 3 D2GP187232
26 .1470 1 7/8 3 D2GP187231
27 .1440 1 7/8 3 D2GP187230
28 .1405 1 3/4 2 7/8 D2GP187229
29 .1360 1 3/4 2 7/8 D2GP187228
30 .1285 1 5/8 2 3/4 D2GP187227
31 .1200 1 5/8 2 3/4 D2GP187226
32 .1160 1 5/8 2 3/4 D2GP187225
33 .1130 1 1/2 2 5/8 D2GP187224
34 .1110 1 1/2 2 5/8 D2GP187223
35 .1100 1 1/2 2 5/8 D2GP187222
36 .1065 1 7/16 2 1/2 D2GP187221
37 .1040 1 7/16 2 1/2 D2GP187220
38 .1015 1 7/16 2 1/2 D2GP187219
39 .0995 1 3/8 2 3/8 D2GP187218
40 .0980 1 3/8 2 3/8 D2GP187217
41 .0960 1 3/8 2 3/8 D2GP187216
42 .0935 1 1/4 2 1/4 D2GP187215
43 .0890 1 1/4 2 1/4 D2GP187214
44 .0860 1 1/8 2 1/8 D2GP187213
45 .0820 1 1/8 2 1/8 D2GP187212
46 .0810 1 1/8 2 1/8 D2GP187211
47 .0785 1 2 D2GP187210
48 .0760 1 2 D2GP187209
49 .0730 1 2 D2GP187208
50 .0700 1 2 D2GP187207
51 .0670 1 2 D2GP187206
52 .0635 7/8 1 7/8 D2GP187205
53 .0595 7/8 1 7/8 D2GP187204
54 .0550 7/8 1 7/8 D2GP187203
55 .0520 7/8 1 7/8 D2GP187202
56 .0465 3/4 1 3/4 D2GP187201
Wire Diameter LOC OAL EDP NO.
#57 0.043 0.75 1.75 D2GP187200
#58 0.042 0.6875 1.625 D2GP187199
#59 0.041 0.6875 1.625 D2GP187198
#60 0.04 0.6875 1.625 D2GP187197
#61 0.039 0.6875 1.625 D2187196
#62 0.038 0.625 1.5 D2187195
#63 0.037 0.625 1.5 D2187194
#64 0.036 0.625 1.5 D2187193
#65 0.035 0.625 1.5 D2187192
#66 0.033 0.5 1.375 D2187191
#67 0.032 0.5 1.375 D2187190
#68 0.031 0.5 1.375 D2187189
#69 0.0292 0.5 1.375 D2187188
#70 0.028 0.375 1.25 D2187187
#71 0.026 0.375 1.25 D2187186
#72 0.025 0.3125 1.125 D2187185
#73 0.024 0.3125 1.125 D2187184
#74 0.0225 0.25 1 D2187183
#75 0.021 0.25 1 D2187182
#76 0.02 0.1875 0.875 D2187181
#77 0.018 0.1875 0.875 D2187180
#78 0.016 0.1875 0.875 D2187179
#79 0.0145 0.125 0.75 D2187178
#80 0.0135 0.125 0.75 D2187177
