Drilling

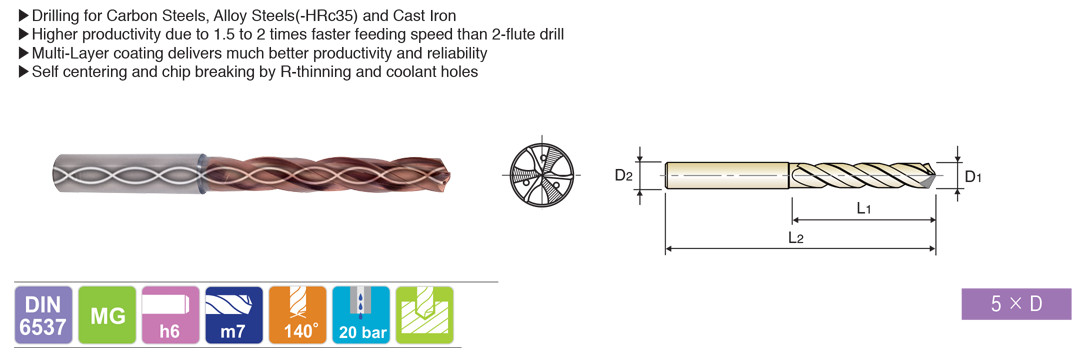

DREAM DRILLS - HIGH FEED with COOLANT HOLES (5XD) - DGR495, DGR497

  Dream Drills High Feed with Coolant Holes (5XD) - DGR495, DGR497
EDP No. Drill Diameter Drill Diameter Drill Diameter Shank Diameter Flute Length Overall Length
H-Coating Metric (D1) Fractional (D1) Decimal (D1) D2 L1 L2
DGR4950404.0063674
DGR495020G4.09#200.161063674
DGR4950414.1063674
DGR4950424.2063674
DGR4950434.3063674
DGR495011F4.36611/640.171963674
DGR4950444.4063674
DGR4950454.5063674
DGR4950464.6063674
DGR4950474.7063674
DGR495012F4.7633/160.187564482
DGR4950484.8064482
DGR4950494.9064482
DGR4950505.000.196964482
DGR4950515.100.200864482
DGR4970135.1613/640.20311/44482
DGR4950525.200.204764482
DGR4950535.300.208764482
DGR4950545.400.212664482
DGR4971035.41#30.21301/44482
DGR4950555.500.216564482
DGR4970145.567/320.21881/44482
DGR4950565.600.220564482
DGR4971025.61#20.22101/44482
DGR4950575.700.224464482
DGR4971015.79#10.22801/44482
DGR4950585.800.228364482
DGR4950595.900.232364482
DGR4970155.9515/640.23441/44482
DGR4950606.000.236264482
DGR4950616.100.240285391
DGR4950626.200.244185391
DGR4950636.300.248085391
DGR4970166.351/40.25001/45391
DGR4950646.400.252085391
DGR4950656.500.255985391
DGR4972066.53F0.25705/165391
DGR4950666.600.259885391
DGR4950676.700.263885391
DGR4970176.7517/640.26565/165391
DGR4950686.800.267785391
DGR4950696.900.271785391
DGR4972096.91I0.27205/165391
DGR4950707.000.275685391
DGR4950717.100.279585391
DGR4970187.149/320.28135/165391
DGR4950727.200.283585391
DGR4950737.300.287485391
DGR4950747.400.291385391
DGR4950757.500.295385391
DGR4970197.5419/640.29695/165391
DGR4950767.600.299285391
DGR4950777.700.303185391
DGR4950787.800.307185391
DGR4950797.900.311085391
DGR4970207.945/160.31255/165391
DGR4950808.000.315085391
DGR4950818.100.31891061103
DGR4950828.20P0.32281061103
DGR4950838.300.32681061103
DGR4970218.3321/640.32813/861103
DGR4950848.400.33071061103
DGR4972178.43Q0.33203/861103
DGR4950858.500.33461061103
DGR4950868.600.33861061103
DGR4950878.700.34251061103
DGR4970228.7311/320.34373/861103
DGR4950888.800.34651061103
DGR4950898.900.35041061103
DGR4950909.000.35431061103
DGR4950919.100.35831061103
DGR4970239.1323/640.35943/861103
DGR4950929.200.36221061103
DGR4950939.300.36611061103
DGR4972219.35U0.36803/861103
DGR4950949.400.37011061103
DGR4950959.500.37401061103
DGR4970249.533/80.37503/861103
DGR4950969.600.37801061103
DGR4950979.700.38191061103
DGR4950989.80W0.38581061103
DGR4950999.900.38981061103
DGR4970259.9225/640.39067/1661103
DGR49510010.000.39371061103
DGR49510110.100.39761271118
DGR49510210.200.40161271118
DGR49510310.300.40551271118
DGR49702610.3213/320.40637/1671118
DGR49510410.400.40941271118
DGR49510510.500.41341271118
DGR49510610.600.41731271118
DGR49510710.700.42131271118
DGR49702710.7227/640.42197/1671118
DGR49510810.800.42521271118
DGR49510910.900.42911271118
DGR49511011.000.43311271118
DGR49511111.100.43701271118
DGR49702811.117/160.43757/1671118
DGR49511211.200.44091271118
DGR49511311.300.44491271118
DGR49511411.400.44881271118
DGR49511511.500.45281271118
DGR49702911.5129/640.45311/271118
DGR49511611.600.45671271118
DGR49511711.700.46061271118
DGR49511811.800.46461271118
DGR49511911.900.46851271118
DGR49703011.9115/320.46881/271118
DGR49512012.000.47241271118
DGR49512112.100.47641477124
DGR49512212.200.48031477124
DGR49512312.300.48431477124
DGR49703112.3031/640.48441/277124
DGR49512412.400.48821477124
DGR49512512.500.49211477124
DGR49512612.600.49611477124
DGR49703212.701/20.50001/277124
DGR49512712.700.50001477124
DGR49512812.800.50391477124
DGR49512912.900.50791477124
DGR49513013.000.51181477124
DGR49513113.1033/640.51561477124
DGR49513213.200.51971477124
DGR49513313.300.52361477124
DGR49513413.400.52761477124
DGR49703413.4917/320.53129/1677124
DGR49513513.500.53151477124
DGR49513613.600.53541477124
DGR49513713.700.53941477124
DGR49513813.800.54331477124
DGR49703513.8935/640.54699/1677124
DGR49513913.900.54721477124
DGR49514014.000.55121477124
DGR49514114.100.55511683133
DGR49514214.200.55911683133
DGR49703614.299/160.56259/1683133
DGR49514314.300.56301683133
DGR49514414.400.56691683133
DGR49514514.500.57091683133
DGR49514614.600.57481683133
DGR49703714.6837/640.57815/883133
DGR49514714.700.57871683133
DGR49514814.800.58271683133
DGR49514914.900.58661683133
DGR49515015.000.59061683133
DGR49703815.0819/320.59385/883133
DGR49515115.100.59451683133
DGR49515215.200.59841683133
DGR49515315.300.60241683133
DGR49515415.400.60631683133
DGR49703915.4839/640.60945/883133
DGR49515515.500.61021683133
DGR49515615.600.61421683133
DGR49515715.700.61811683133
DGR49515815.800.62201683133
DGR49704015.885/80.62505/883133
DGR49515915.900.62601683133
DGR49516016.000.62991683133
DGR49516116.100.63391893143
DGR49704116.2741/640.640611/1693143
DGR49516516.500.64961893143
DGR49704216.6721/320.656311/1693143
DGR49517017.000.66931893143
DGR49704317.0743/640.671911/1693143
DGR49704417.4611/160.687511/1693143
DGR49517517.500.68901893143
DGR49704517.8645/640.70313/493143
DGR49518018.000.70871893143
DGR49704618.2623/320.71883/4101153
DGR49518518.500.728320101153
DGR49704718.6547/640.73443/4101153
DGR49519019.000.748020101153
DGR49704819.053/40.75003/4101153
DGR49519519.500.767720101153
DGR49520020.000.787420101153
