I-ONE DRILLS INSERTS & HOLDERS DIA 26.00 to 27.99 - Y261H

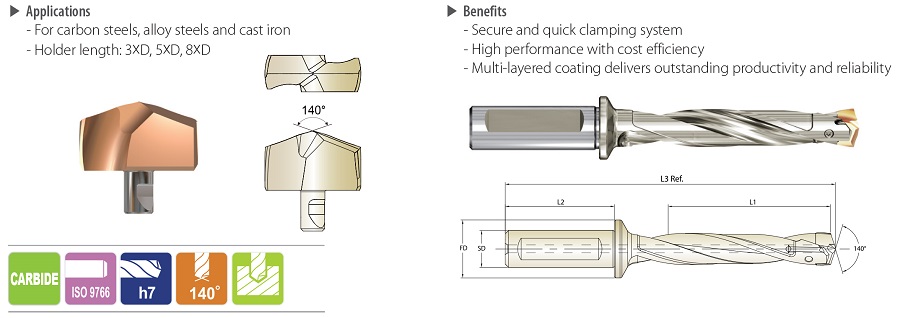

  i - ONE DRILLS INSERTS & HOLDERS Y261H
Series range Insert EDP Insert O.D.(h7) Holder EDP Shank Dia. Shank Length Flange Dia. Drilling Depth Overall Length Screw No.
(mm) H-Coating dec. frac. mm   L2 FD L1 L3 Ref.
S26
Ø26.00
to
Ø27.99		 Y261H2600 1.0236 26.00 ZD26003125
ZD26005125
ZD26008125 		1-1/4 2-3/8 1-15/32 3D
5D
8D		 3-3/16
5-5/16
8-1/2		 6-51/64
8-7/8
12-1/64		 TX2627P10
Y261H2619 1.03111-1/32 26.19
Y261H2620 1.0315 26.20
Y261H2650 1.0433 26.50
Y261H2659 1.04691-3/64 26.59
Y261H2660 1.0472 26.60
Y261H2670 1.0512 26.70
Y261H2680 1.0551 26.80
Y261H2690 1.0591 26.90
Y261H2699 1.06261-1/16 26.99
Y261H2700 1.0630 27.00 ZD27003125
ZD27005125
ZD27008125 		1-1/4 2-3/8 1-15/32 3D
5D
8D		 3-5/16
5-33/64
8-13/16		 6-29/32
9-5/64
12-21/64		 TX2728P10
Y261H2710 1.0669 27.10
Y261H2720 1.0709 27.20
Y261H2730 1.0748 27.30
Y261H2738 1.07801-5/64 27.38
Y261H2740 1.0787 27.40
Y261H2750 1.0827 27.50
Y261H2760 1.0866 27.60
Y261H2770 1.0906 27.70
Y261H2778 1.09371-3/32 27.78
Y261H2780 1.0945 27.80
Y261H2790 1.0984 27.90
