I-ONE DRILLS INSERTS & HOLDERS DIA 14.00 to 15.99 - Y141H

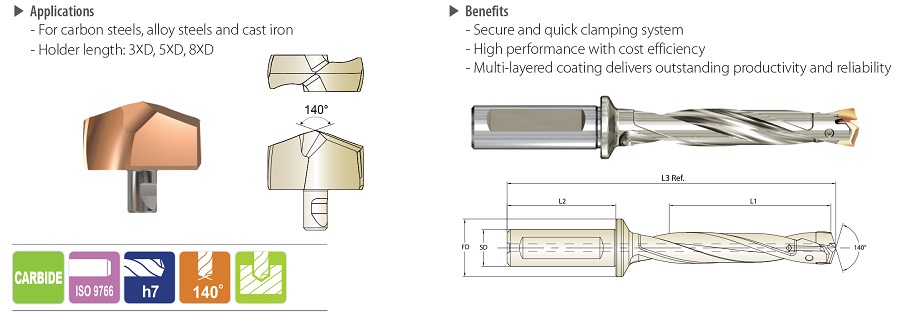

  i - ONE DRILLS INSERTS & HOLDERS Y141H
Series range Insert EDP Insert O.D.(h7) Holder EDP Shank Dia. Shank Length Flange Dia. Drilling Depth Overall Length Screw No.
(mm) H-Coating dec. frac. mm   L2 FD L1 L3 Ref.
S14
Ø14.00
to
Ø15.99		 Y141H1400 .5512 14.00 ZD14003063
ZD14005063
ZD14008063 		5/8 1-7/8 29/32 3D
5D
8D		 1-23/32
2-55/64
4-9/16		 4-9/16
5-43/64
7-5/16		 TX1415P7
Y141H1410 .5551 14.10
Y141H1420 .5591 14.20
Y141H1429 .56259/16 14.29
Y141H1430 .5630 14.30
Y141H1440 .5669 14.40
Y141H1450 .5709 14.50 ZD14503063
ZD14505063
ZD14508063 		5/8 1-7/8 29/32 3D
5D
8D		 1-49/64
2-61/64
4-23/32		 4-41/64
5-25/32
7-1/2
Y141H1460 .5748 14.60
Y141H1468 .578137/64 14.68
Y141H1470 .5787 14.70
Y141H1480 .5827 14.80
Y141H1490 .5866 14.90
Y141H1500 .5906 15.00 ZD15003063
ZD15005063
ZD15008063 		5/8 1-7/8 29/32 3D
5D
8D		 1-53/64
3-3/64
4-7/8		 4-23/32
5-29/32
7-43/64
Y141H1508 .593819/32 15.08
Y141H1510 .5945 15.10
Y141H1520 .5984 15.20
Y141H1530 .6024 15.30
Y141H1540 .6063 15.40
Y141H1548 .609439/64 15.48 ZD15503063
ZD15505063
ZD15508063 		5/8 1-7/8 29/32 3D
5D
8D		 1-57/64
3-5/32
5-3/64		 4-49/64
5-63/64
7-13/16
Y141H1550 .6102 15.50
Y141H1560 .6142 15.60
Y141H1570 .6181 15.70
Y141H1580 .6220 15.80
Y141H1588 .62505/8 15.88
Y141H1590 .6260 15.90
