Home > Milling > HIGH PERFORMANCE > POWDERED METAL >
STEEL
ONLY ONE PM60 MULTI FLUTE ROUGHING - FINE (Center Cut) - GYG68
View
Speeds and Feeds Data

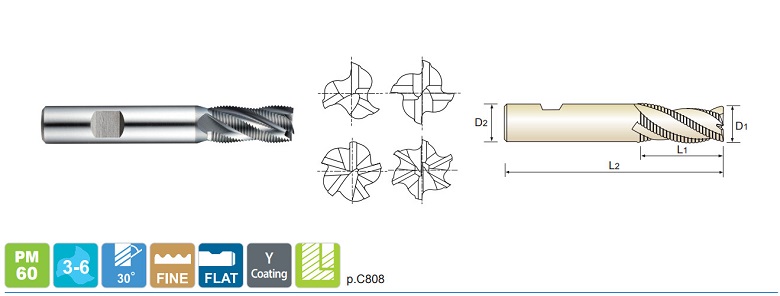

MUTI FLUTE ROUGHING- FINE (Center Cut) PM60 - GYG68
EDP No.
Mill Diameter
Shank Diameter
Length of Cut
Overall Length
No. of Flute
Chamfer
Y-COATED
D1
D2
L1
L2
GYG68016
1/4
3/8
5/8
2-7/16
3
.020
GYG68020
5/16
3/8
3/4
2-1/2
3
.020
GYG68901
5/16
3/8
1-3/8
3-3/16
3
.020
GYG68024
3/8
3/8
3/4
2-1/2
4
.020
GYG68902
3/8
3/8
1-1/2
3-1/4
4
.020
GYG68032
1/2
1/2
1-1/4
3-1/4
4
.030
GYG68903
1/2
1/2
2
4
4
.030
GYG68040
5/8
5/8
1-5/8
3-3/4
4
.030
GYG68904
5/8
5/8
2-1/2
4-5/8
4
.030
GYG68048
3/4
3/4
1-5/8
3-7/8
4
.030
GYG68905
3/4
3/4
2-1/2
4-3/4
4
.030
GYG68906
3/4
3/4
3
5-1/4
4
.030
GYG68064
1
1
2
4-1/2
5
.030
GYG68907
1
1
4
6-1/2
5
.030
GYG68116
1-1/4
1-1/4
2
4-1/2
6
.042
