Milling

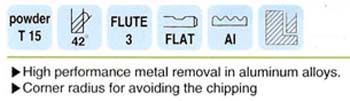

T15 3 FLUTE 42 DEGREE HELIX, REGULAR, MEDIUM & LONG LENGTH, ROUGHING

  EK191 Series
SIZE Uncoated TiCN Coated
RADIUS MILL DIAMETER SHANK DIAMETER LENGTH OF CUT OVERALL LENGTH EDP No. EDP No.
R.060 3/4 3/4 1-5/8 3-7/8 66903 66903PC
R.090 3/4 3/4 1-5/8 3-7/8 66904 66904PC
R.120 3/4 3/4 1-5/8 3-7/8 66905 66905PC
R.060 1 1 2 4-1/2 66906 66906PC
R.090 1 1 2 4-1/2 66907 66907PC
R.120 1 1 2 4-1/2 66908 66908PC
R.060 1-1/4 1-1/4 2 4-1/2 66909 66909PC
R.090 1-1/4 1-1/4 2 4-1/2 66910 66910PC
R.120 1-1/4 1-1/4 2 4-1/2 66911 66911PC
 EK226 Series
SIZE Uncoated TiCN Coated
RADIUS MILL DIAMETER SHANK DIAMETER LENGTH OF CUT OVERALL LENGTH EDP No. EDP No.
R.060 3/4 3/4 2-1/4 4-5/8 80901 80901PC
R.090 3/4 3/4 2-1/4 4-5/8 80902 80902PC
R.120 3/4 3/4 2-1/4 4-5/8 80903 80903PC
R.060 1 1 3 5-1/2 80904 80904PC
R.090 1 1 3 5-1/2 80905 80905PC
R.120 1 1 3 5-1/2 80906 80906PC
R.060 1-1/4 1-1/4 3 5-1/2 80907 80907PC
R.090 1-1/4 1-1/4 3 5-1/2 80908 80908PC
R.120 1-1/4 1-1/4 3 5-1/2 80909 80909PC
