Home > Milling > HIGH PERFORMANCE > POWDERED METAL >
STAINLESS STEEL TITANIUM

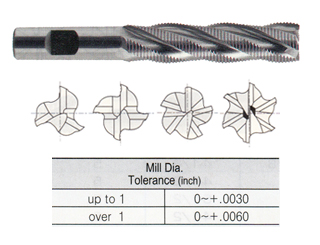

TANK POWER MULTI FLUTE LONG FINE PITCH ROUGHING (E9A86)
View
Speeds and Feeds Data
TANK POWER MULTI FLUTE LONG FINE PITCH ROUGHING (E9A86)
MILL
SHANK
LENGTH
OVERALL
No. of
Uncoated
TiAlN Coated
DIAMETER
SHANK DIAMETER
OF CUT
LENGTH
Flute
EDP No.
EDP No.
5/16
3/8
1-3/8
3-3/16
3
E9A86020
E9A86020TF
3/8
3/8
1-1/2
3-1/4
4
E9A86024
E9A86024TF
3/8
3/8
1-1/2
4"
4
E9A86924
E9A86924TF
1/2
1/2
2"
4
4
E9A86032
E9A86032TF
5/8
5/8
2-1/2
4-5/8
4
E9A86040
E9A86040TF
3/4
5/8
3"
5-1/8
4
E9A86048
E9A86048TF
3/4
3/4
3"
5-1/4
4
E9990902
E9990902TF
7/8
3/4
3-1/2
5-3/4
5
E9A86056
E9A86056TF
7/8
7/8
3-1/2
5-3/4
5
E9A86956
E9A86956TF
1"
1"
4"
6-1/2
5
E9990903
E9990903TF
1-1/4
3/4
4"
6-1/4
6
E9A86116
E9A86116TF
1-1/4
1-1/4
4"
6-1/2
6
E9990904
E9990904TF
