Tapping

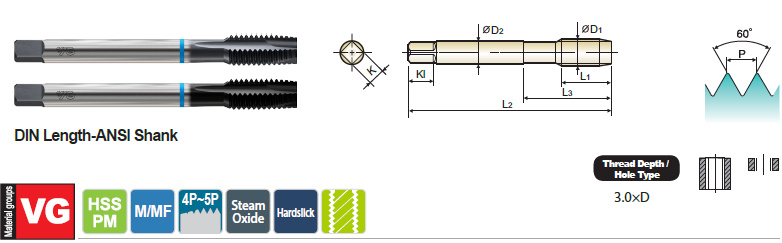

BLUE RING SPIRAL POINT Taps, DIN/ANSI Dimensions, & Steels and Stainless Steels up to 35HRc, and Exotics (N3,O3)

 Metric Spiral Pointed Taps Plug Style -for Steels & Stainless Steels up to 35HRc
Size Pitch No. of Flute Limits ANSI DIN Length / ANSI Shank
Steam Oxide Hardslick Coated Steam Oxide Hardslick Coated
EDP No. EDP No. EDP No. EDP No.
M3 0.5 3 D3 N7203 N8203 N3203 O3203
M3.5 0.6 3 D4 N7224 N8224 N3224 O3224
M4 0.7 3 D4 N7244 N8244 N3244 O3244
M5 0.8 3 D4 N7284 N8284 N3284 O3284
M6 1 3 D5 N7315 N8315 N3315 O3315
M7 1 3 D5 N7345 N8345 N3345 O3345
M8 1.25 3 D5 N7365 N8365 N3365 O3365
M8 1 3 D5 N7375 N8375 N3375 O3375
M10 1.5 3 D6 N7426 N8426 N3426 O3426
M10 1.25 3 D5 N7435 N8435 N3435 O3435
M12 1.75 3 D6 N7506 N8506 N3506 O3506
M12 1.25 3 D5 N7525 N8525 N3525 O3525
M14 2 3 D7 N7547 N8547 N3547 O3547
M14 1.5 3 D6 N7556 N8556 N3556 O3556
M16 2 3 D7 N7607 N8607 N3607 O3607
M16 1.5 3 D6 N7616 N8616 N3616 O3616
M18 2.5 3 D7 N7657 N8657 N3657 O3657
M18 1.5 3 D6 N7676 N8676 N3676 O3676
