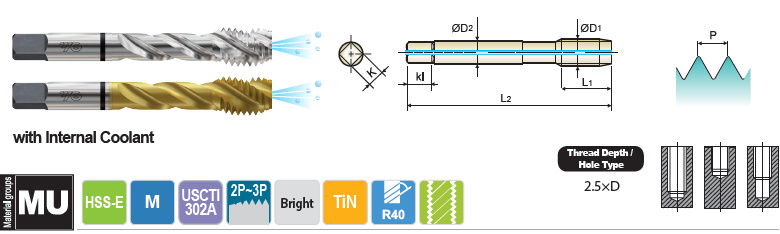

SPIRAL FLUTE COMBO TAP FOR MULTI-PURPOSE WITH INTERNAL COOLANT- METRIC
|
|
|
|
|
|
|
|
 Spiral Flute Combo Tap for Multi-Purpose with Internal Coolant - Metric |
| Size |
|
Pitch |
Limit |
OAL |
Thread
Length |
Shank
Dia. |
Square
Size |
Square
Length |
No. of
Flute |
Bright Finish |
TiN Coated |
| (D) |
|
(P) |
|
(L) |
(Lt) |
(d) |
(k) |
(kl) |
(N) |
EDP No. |
EDP No. |
| M6 | x | 1.0 | D5 | 2.500 | .433 | .255 | .191 | .312 | 3 | T8315 | T8315N |
| M8 | x | 1.25 | D5 | 2.719 | .472 | .318 | .238 | .375 | 3 | T8365 | T8365N |
| M10 | x | 1.5 | D6 | 2.938 | .512 | .381 | .286 | .438 | 3 | T8426 | T8426N |
| M12 | x | 1.75 | D6 | 3.375 | .591 | .367 | .275 | .438 | 3 | T8506 | T8506N |
| M14 | x | 2.0 | D7 | 3.594 | .709 | .429 | .322 | .500 | 3 | T8547 | T8547N |
| M16 | x | 2.0 | D7 | 3.812 | .709 | .480 | .360 | .562 | 3 | T8607 | T8607N |
| M18 | x | 2.5 | D7 | 4.031 | .787 | .542 | .406 | .625 | 4 | T8657 | T8657N |
| M20 | x | 2.5 | D7 | 4.469 | .787 | .652 | .489 | .688 | 4 | T8707 | T8707N |
|
|
 |
|
