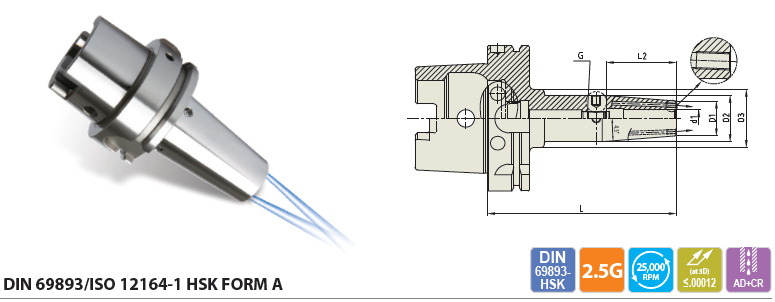

DUAL CONTACT SHRINK FIT HOLDER (Coolant Channel Resealable) - HSK100A - INCH

EDP No. TAPER No. MODEL No. d1 D1 D2 D3 L L2 G WEIGHT(lbs)
VR301JR 100A HSK100A - SFH 1/4CR - 5.12 0.250 0.827 1.063 1.575 5.120 1.417 M5x0.8mm -
VR302JR HSK100A - SFH 5/16CR - 5.12 0.313 0.827 1.063 1.575 5.120 1.417 M6x1.0mm -
VR303JR HSK100A - SFH 3/8CR - 5.12 0.375 0.945 1.260 1.575 5.120 1.713 M8x1.0mm -
VR304JR HSK100A - SFH 7/16CR - 5.12 0.438 0.945 1.260 1.575 5.120 1.929 M10x1.0mm -
VR305JR HSK100A - SFH 1/2CR - 5.12 0.500 0.945 1.260 1.575 5.120 1.929 M10x1.0mm -
VR306JR HSK100A - SFH 5/8CR - 5.12 0.625 1.063 1.339 1.575 5.120 2.047 M12x1.0mm -
VR307JR HSK100A - SFH 3/4CR - 5.12 0.750 1.299 1.654 - 5.120 2.126 M16x1.0mm -
VR308JR HSK100A - SFH 1CR - 5.12 1.000 1.732 2.087 - 5.120 2.362 M16x1.0mm -
VR309JR HSK100A - SFH 1 1/4CR - 5.12 1.250 1.732 2.087 - 5.120 2.362 M16x1.0mm -
