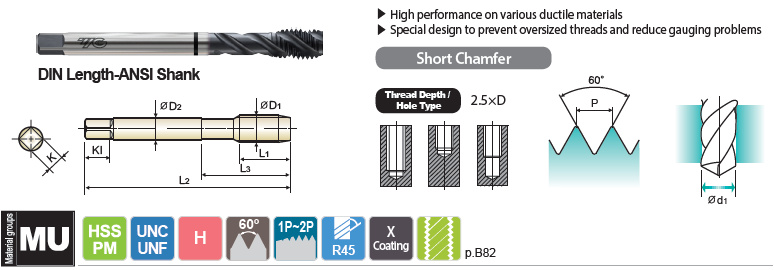

Spiral Flute Bottoming High Performance Taps - TRF34 series
|
|
|
|
|
|
|
|
| Size | TPI |
EDP No. |
Limits | Thread Length | Overall Length | Neck Length | Shank Diameter | Square Size | Square Length | No. of Flute | Tapping Drill Diameter |
| ØD1 |
L1 | L2 | L3 | ØD2 | K | KI | Z | Ød1 |
| #4 | - | 40 |
TRF34162GS
| H2 | 0.2 | 2.21 | 0.708 | 0.141 | 0.11 | 0.19 | 2 | - | 2.3 |
| #4 | - | 48 |
TRF34182GS
| H2 | 0.2 | 2.21 | 0.708 | 0.141 | 0.11 | 0.19 | 2 | 3/32 | - |
| #5 | - | 40 |
TRF34202GS
| H2 | 0.2 | 2.21 | 0.708 | 0.141 | 0.11 | 0.19 | 3 | - | 2.6 |
| #6 | - | 32 |
TRF34242GS
| H2 | 0.248 | 2.21 | 0.783 | 0.141 | 0.11 | 0.19 | 3 | - | 2.8 |
| #6 | - | 32 |
TRF34243GS
| H3 | 0.248 | 2.21 | 0.783 | 0.141 | 0.11 | 0.19 | 3 | - | 2.8 |
| #6 | - | 40 |
TRF34262GS
| H2 | 0.248 | 2.21 | 0.783 | 0.141 | 0.11 | 0.19 | 3 | - | 2.9 |
| #8 | - | 32 |
TRF34282GS
| H2 | 0.251 | 2.48 | 0.826 | 0.168 | 0.131 | 0.25 | 3 | - | 3.4 |
| #8 | - | 32 |
TRF34283GS
| H3 | 0.251 | 2.48 | 0.826 | 0.168 | 0.131 | 0.25 | 3 | - | 3.4 |
| #8 | - | 36 |
TRF34302GS
| H2 | 0.251 | 2.48 | 0.826 | 0.168 | 0.131 | 0.25 | 3 | - | 3.5 |
| #10 | - | 24 |
TRF34323GS
| H3 | 0.326 | 2.75 | 0.976 | 0.194 | 0.152 | 0.25 | 3 | - | 3.9 |
| #10 | - | 32 |
TRF34342GS
| H2 | 0.326 | 2.75 | 0.976 | 0.194 | 0.152 | 0.25 | 3 | - | 4.1 |
| #10 | - | 32 |
TRF34343GS
| H3 | 0.326 | 2.75 | 0.976 | 0.194 | 0.152 | 0.25 | 3 | - | 4.1 |
| #12 | - | 24 |
TRF34363GS
| H3 | 0.33 | 3.15 | 1.177 | 0.22 | 0.165 | 0.28 | 3 | - | 4.5 |
| #12 | - | 28 |
TRF34383GS
| H3 | 0.33 | 3.15 | 1.177 | 0.22 | 0.165 | 0.28 | 3 | - | 4.7 |
| 1/4 | - | 20 |
TRF34403GS
| H3 | 0.397 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.2 |
| 1/4 | - | 20 |
TRF34405GS
| H5 | 0.397 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.2 |
| 1/4 | - | 28 |
TRF34423GS
| H3 | 0.397 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.5 |
| 1/4 | - | 28 |
TRF34424GS
| H4 | 0.397 | 3.15 | 1.177 | 0.255 | 0.191 | 0.31 | 3 | - | 5.5 |
| 5/16 | - | 18 |
TRF34443GS
| H3 | 0.556 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 6.7 |
| 5/16 | - | 18 |
TRF34445GS
| H5 | 0.556 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 6.7 |
| 5/16 | - | 24 |
TRF34463GS
| H3 | 0.417 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 7 |
| 5/16 | - | 24 |
TRF34464GS
| H4 | 0.417 | 3.54 | 1.377 | 0.318 | 0.238 | 0.38 | 3 | - | 7 |
| 3/8 | - | 16 |
TRF34483GS
| H3 | 0.625 | 3.94 | 1.535 | 0.381 | 0.286 | 0.44 | 3 | - | 8.1 |
| 3/8 | - | 16 |
TRF34485GS
| H5 | 0.625 | 3.94 | 1.535 | 0.381 | 0.286 | 0.44 | 3 | - | 8.1 |
| 3/8 | - | 24 |
TRF34503GS
| H3 | 0.417 | 3.94 | 1.377 | 0.381 | 0.286 | 0.44 | 3 | - | 8.6 |
| 3/8 | - | 24 |
TRF34504GS
| H4 | 0.417 | 3.94 | 1.377 | 0.381 | 0.286 | 0.44 | 3 | - | 8.6 |
| 7/16 | - | 14 |
TRF34523GS
| H3 | 0.714 | 3.94 | 1.712 | 0.323 | 0.242 | 0.41 | 3 | - | 9.5 |
| 7/16 | - | 14 |
TRF34525GS
| H5 | 0.714 | 3.94 | 1.712 | 0.323 | 0.242 | 0.41 | 3 | - | 9.5 |
| 7/16 | - | 20 |
TRF34543GS
| H3 | 0.5 | 3.94 | 1.712 | 0.323 | 0.242 | 0.41 | 3 | - | 10 |
| 7/16 | - | 20 |
TRF34545GS
| H5 | 0.5 | 3.94 | 1.712 | 0.323 | 0.242 | 0.41 | 3 | - | 10 |
| 1/2 | - | 13 |
TRF34563GS
| H3 | 0.769 | 4.33 | 1.933 | 0.367 | 0.275 | 0.44 | 3 | - | 11 |
| 1/2 | - | 13 |
TRF34565GS
| H5 | 0.769 | 4.33 | 1.933 | 0.367 | 0.275 | 0.44 | 3 | - | 11 |
| 1/2 | - | 20 |
TRF34583GS
| H3 | 0.5 | 3.94 | 1.933 | 0.367 | 0.275 | 0.44 | 3 | - | 11.6 |
| 1/2 | - | 20 |
TRF34585GS
| H5 | 0.5 | 3.94 | 1.933 | 0.367 | 0.275 | 0.44 | 3 | - | 11.6 |
| 9/16 | - | 12 |
TRF34603GS
| H3 | 0.833 | 4.33 | 1.972 | 0.429 | 0.322 | 0.5 | 3 | - | 12.5 |
| 9/16 | - | 12 |
TRF34605GS
| H5 | 0.833 | 4.33 | 1.972 | 0.429 | 0.322 | 0.5 | 3 | - | 12.5 |
| 9/16 | - | 18 |
TRF34623GS
| H3 | 0.556 | 3.94 | 1.972 | 0.429 | 0.322 | 0.5 | 3 | - | 13 |
| 9/16 | - | 18 |
TRF34625GS
| H5 | 0.556 | 3.94 | 1.972 | 0.429 | 0.322 | 0.5 | 3 | - | 13 |
| 5/8 | - | 11 |
TRF34643GS
| H3 | 0.909 | 4.33 | 2.125 | 0.48 | 0.36 | 0.56 | 3 | - | 13.9 |
| 5/8 | - | 11 |
TRF34645GS
| H5 | 0.909 | 4.33 | 2.125 | 0.48 | 0.36 | 0.56 | 3 | - | 13.9 |
| 5/8 | - | 18 |
TRF34663GS
| H3 | 0.556 | 3.94 | 2.125 | 0.48 | 0.36 | 0.56 | 3 | - | 14.6 |
| 5/8 | - | 18 |
TRF34665GS
| H5 | 0.556 | 3.94 | 2.125 | 0.48 | 0.36 | 0.56 | 3 | - | 14.6 |
|
|
 |
|
