FLAT BOTTOM SPADE DRILL

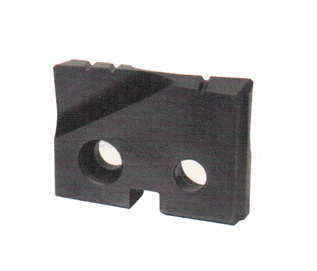

  Throw-Away Flat Bottom Drill Inserts
Series Diameter TiN coated TiAlN coated
Inch Metric Decimal EDP NO. EDP NO.
(inch) (mm) (inch)
Y3/8"9.53.3750"SF05024SF15024
Y13/32"10.35.4063"SF05026SF15026
Y7/16"11.11.4375"SF05028SF15028
Z15/32"11.91.4688"SF05030SF15030
Z1/2"12.70.5000"SF05032SF15032
017/32"13.49.5313"SF05034SF15034
09/16"14.29.5625"SF05036SF15036
019/32"15.08.5938"SF05038SF15038
05/8"15.88.6250"SF05040SF15040
021/32"16.67.6563"SF05042SF15042
011/16"17.46.6875"SF05044SF15044
123/32"18.26.7188"SF05046SF15046
13/4"19.05.7500"SF05048SF15048
125/32"19.84.7813"SF05050SF15050
113/16"20.64.8125"SF05052SF15052
127/32"21.43.8438"SF05054SF15054
17/8"22.23.8750"SF05056SF15056
129/32"23.02.9063"SF05058SF15058
115/16"23.81.9375"SF05060SF15060
231/32"24.61.9688"SF05062SF15062
21"25.401.0000"SF05100SF15100
21-1/3226.191.0313"SF05102SF15102
21-1/16"26.991.0625"SF05104SF15104
21-3/32"27.781.0938"SF05106SF15106
21-1/8"28.581.1250"SF05108SF15108
21-5/32"29.371.1563"SF05110SF15110
21-3/16"30.161.1875"SF05112SF15112
21-7/32"30.961.2188"SF05114SF15114
21-1/4"31.751.2500"SF05116SF15116
21-9/32"32.541.2813"SF05118SF15118
21-5/16"33.341.3125"SF05120SF15120
21-11/32"34.131.3438"SF05122SF15122
21-3/8"34.931.3750"SF05124SF15124
