| Thread Mills |
Home >
Thread Mills > Thread Mills
|
 |
|
|
|
|

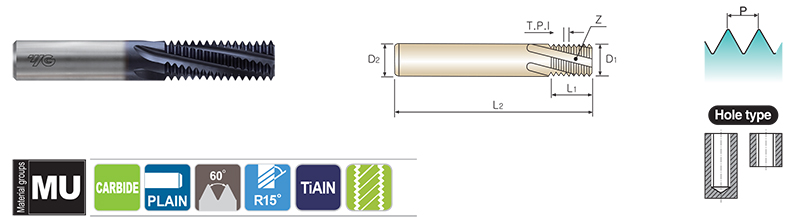

THREAD MILLS CARBIDE UN TIALN COATED - TE series
|
|
|
|
|
|
|
|
 Thread Mills Solid Carbide, 60 Degree, Helical Flute, TiAlN coated for Unified Internal Threads (ANSI B 1.1) |
| EDP No. |
SIZE |
Pitch |
Cutter |
Shank |
Length |
Overall |
Flutes |
|
|
T.P.I |
Diameter |
Diameter |
of Cut |
Length |
|
| TE080 |
#2-56 | 56 | 0.065 | 0.125 | 0.125 | 2 | 3 |
| TE100 |
#2-64 | 64 | 0.065 | 0.125 | 0.125 | 2 | 3 |
| TE120 |
#3-48 | 48 | 0.075 | 0.125 | 0.167 | 2 | 3 |
| TE220 |
#5-44 | 44 | 0.095 | 0.125 | 0.228 | 2 | 3 |
| TE160 |
#4-40 | 40 | 0.085 | 0.125 | 0.175 | 2 | 3 |
| TE300 |
#8-36 | 36 | 0.115 | 0.125 | 0.25 | 2 | 3 |
| TE240 |
#6-32 | 32 | 0.1 | 0.125 | 0.218 | 2 | 3 |
| TE280 |
#8-32 | 32 | 0.115 | 0.125 | 0.25 | 2 | 3 |
| TE340 |
#10-32 | 32 | 0.12 | 0.125 | 0.312 | 2 | 3 |
| TEF90 |
1/2-32 | 32 | 0.37 | 0.375 | 1 | 3.5 | 4 |
| TEK90 |
#10-28 | 28 | 0.12 | 0.125 | 0.312 | 2 | 3 |
| TE420 |
1/4-28 | 28 | 0.18 | 0.187 | 0.5 | 2.5 | 3 |
| TE590 |
1/2-28 | 28 | 0.37 | 0.375 | 1 | 3.5 | 4 |
| TE320 |
#10-24 | 24 | 0.12 | 0.125 | 0.312 | 2 | 3 |
| TE460 |
5/16-24 | 24 | 0.235 | 0.25 | 0.625 | 2.5 | 3 |
| TE500 |
3/8-24 | 24 | 0.285 | 0.312 | 0.75 | 3 | 4 |
| TE570 |
1/2-24 | 24 | 0.37 | 0.375 | 1 | 3.5 | 4 |
| TE400 |
1/4-20 | 20 | 0.18 | 0.187 | 0.5 | 2.5 | 3 |
| TE540 |
7/16-20 | 20 | 0.335 | 0.375 | 0.875 | 3.5 | 4 |
| TE580 |
1/2-20 | 20 | 0.37 | 0.375 | 1 | 3.5 | 4 |
| TE440 |
5/16-18 | 18 | 0.235 | 0.25 | 0.625 | 2.5 | 3 |
| TE620 |
9/16-18 | 18 | 0.37 | 0.375 | 0.875 | 3.5 | 4 |
| TE480 |
3/8-16 | 16 | 0.285 | 0.312 | 0.75 | 3 | 4 |
| TE720 |
3/4-16 | 16 | 0.49 | 0.5 | 1.25 | 3.5 | 4 |
| TE520 |
7/16-14 | 14 | 0.305 | 0.312 | 0.75 | 3 | 4 |
| TE760 |
7/8-14 | 14 | 0.49 | 0.5 | 1.25 | 3.5 | 4 |
| TE560 |
1/2-13 | 13 | 0.35 | 0.375 | 0.875 | 3.5 | 4 |
| TE600 |
9/16-12 | 12 | 0.37 | 0.375 | 0.875 | 3.5 | 4 |
| TE710 |
3/4-12 | 12 | 0.495 | 0.5 | 1.25 | 3.5 | 4 |
| TE800 |
1-12 | 12 | 0.745 | 0.75 | 1.5 | 4 | 5 |
| TE640 |
5/8-11 | 11 | 0.47 | 0.5 | 1.25 | 3.5 | 4 |
| TE700 |
3/4-10 | 10 | 0.495 | 0.5 | 1.25 | 3.5 | 4 |
| TE740 |
7/8-9 | 9 | 0.62 | 0.625 | 1.375 | 4 | 4 |
| TE780 |
1-8 | 8 | 0.62 | 0.625 | 1.375 | 4 | 4 |
| TE820 |
1-1/8-7 & 1-1/4 | 7 | 0.745 | 0.75 | 1.572 | 4.5 | 5 |
| TE900 |
1-3/8 | 6 | 0.745 | 0.75 | 1.500 | 4.5 | 5 |
|
|
 |
|
