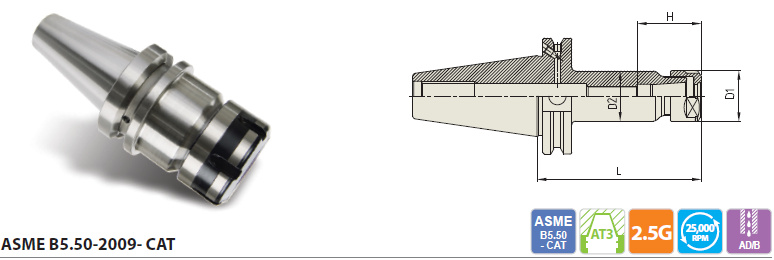

SK SLIM CHUCK - CAT - INCH

EDP
No.		 TAPER
No.		 MODEL No. CLAMPING RANGE L D1 D2 H COLLET SERIES
Min. Max.
TK020 40 CAT40 AD/B - SKA 6 - 3.54 .036 - .236 3.540 0.787 0.768 0.827 1.378 SKC6
TK021 CAT40 AD/B - SKA 6 - 4.72 .036 - .236 4.720 0.787 0.768 0.827 1.378 SKC6
TK022 CAT40 AD/B - SKA 6 - 5.90 .036 - .236 5.900 0.787 0.768 0.827 1.378 SKC6
TK023 CAT40 AD/B - SKA 10 - 3.54 .068 - .394 3.540 1.102 1.083 1.181 1.969 SKC10
TK024 CAT40 AD/B - SKA 10 - 4.72 .068 - .394 4.720 1.102 1.083 1.181 1.969 SKC10
TK025 CAT40 AD/B - SKA 10 - 5.90 .068 - .394 5.900 1.102 1.083 1.181 1.969 SKC10
TK026 CAT40 AD/B - SKA 13 - 3.54 .108 - .512 3.540 1.299 1.299 1.220 2.559 SKC13
TK027 CAT40 AD/B - SKA 13 - 4.72 .108 - .512 4.720 1.299 1.299 1.220 2.559 SKC13
TK028 CAT40 AD/B - SKA 13 - 5.90 .108 - .512 5.900 1.299 1.299 1.220 2.559 SKC13
TK029 CAT40 AD/B - SKA 16 - 3.54 .108 - .630 3.540 1.575 1.575 1.772 2.756 SKC16
TK030 CAT40 AD/B - SKA 16 - 4.72 .108 - .630 4.720 1.575 1.575 1.772 2.756 SKC16
TK031 CAT40 AD/B - SKA 16 - 5.90 .108 - .630 5.900 1.575 1.575 1.772 2.756 SKC16
TK032 CAT40 AD/B - SKA 20 - 3.54 .138 - .787 3.540 1.909 1.909 1.850 3.150 SKC20
TK033 CAT40 AD/B - SKA 20 - 4.72 .138 - .787 4.720 1.909 1.909 1.850 3.150 SKC20
TK034 CAT40 AD/B - SKA 20 - 5.90 .138 - .787 5.900 1.909 1.909 1.850 3.150 SKC20
TK035 CAT40 AD/B - SKA 25 - 3.54 .630 - 1.000 3.540 2.165 2.165 2.165 3.346 SKC25
TK036 CAT40 AD/B - SKA 25 - 4.72 .630 - 1.000 4.720 2.165 2.165 2.165 3.346 SKC25
TK037 CAT40 AD/B - SKA 25 - 5.90 .630 - 1.000 5.900 2.165 2.165 2.165 3.346 SKC25
