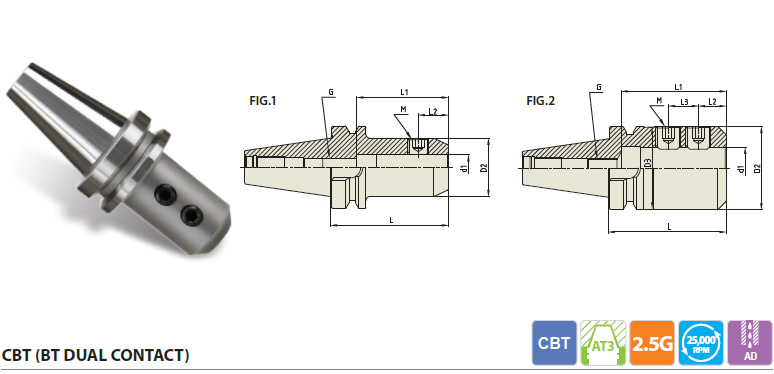

DUAL CONTACT SIDE LOCK ARBOR - CBT - INCH

EDP No. TAPER
No.		 MODEL No. d1 D2 D3 L L1 L2 L3 M G FIG.
AD020 30 CBT30 - SLA 1/4 - 2.36 0.250 0.780 - 2.362 1.378 0.598 - UNF1/4-28 1/4L UNF#10-32 3/4L 1
AD022 CBT30 - SLA 5/16 - 2.36 0.313 0.880 - 2.362 1.378 0.630 - UNF5/16-24 1/4L UNF1/4-28 3/4L 1
AD024 CBT30 - SLA 3/8 - 2.36 0.375 1.000 - 2.362 1.969 0.630 - UNF3/8-24 5/16L UNF5/16-24 3/4L 1
AD026 CBT30 - SLA 1/2 - 2.36 0.500 1.250 - 2.362 2.165 0.787 - UNF7/16-20 3/8L UNF7/16-16 1.0L 1
AD028 CBT30 - SLA 5/8 - 2.95 0.625 1.500 - 2.953 2.756 0.882 - UNF1/2-20 1/2L UN9/16-16 1.0L 1
AD030 CBT30 - SLA 3/4 - 2.95 0.750 1.750 - 2.953 2.756 0.909 - UNF5/8-18 1/2L UN9/16-16 1.0L 1
AD032 CBT30 - SLA 1 - 2.95 1.000 2.000 1.772 2.953 2.756 0.831 0.902 UNF3/4-16 1/2L UN9/16-16 1.0L 2
AE020 40 CBT40 - SLA 1/4 - 2.36 0.250 0.780 - 2.362 1.378 0.598 - UNF1/4-28 1/4L UNF#10-32 3/4L 1
AE022 CBT40 - SLA 5/16 - 2.36 0.313 0.880 - 2.362 1.378 0.630 - UNF5/16-24 1/4L UNF1/4-28 3/4L 1
AE024 CBT40 - SLA 3/8 - 2.36 0.375 1.000 - 2.362 1.969 0.630 - UNF3/8-24 5/16L UNF5/16-24 3/4L 1
AE026 CBT40 - SLA 1/2 - 2.36 0.500 1.250 - 2.362 2.165 0.787 - UNF7/16-20 3/8L UNF7/16-16 1.0L 1
AE028 CBT40 - SLA 5/8 - 3.54 0.625 1.500 - 3.543 2.756 0.882 - UNF1/2-20 1/2L UN9/16-16 1.0L 1
AE030 CBT40 - SLA 3/4 - 3.54 0.750 1.750 - 3.543 2.756 0.909 - UNF5/8-18 1/2L UN9/16-16 1.0L 1
AE032 CBT40 - SLA 1 - 3.54 1.000 2.000 - 3.543 2.756 0.831 0.902 UNF3/4-16 1/2L UN9/16-16 1.0L 2
AE034 CBT40 - SLA 1 1/4 - 3.54 1.250 2.500 - 3.543 3.150 0.831 0.902 UNF3/4-16 1/2L UN9/16-16 1.0L 2
