Rotary Tooling Home >

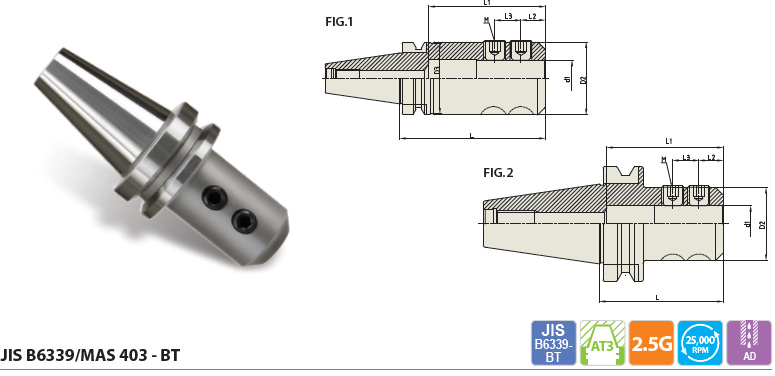

HIGH BALANCED END MILL HOLDER - EXTENDED - BT - INCH

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 L3 M FIG.
AH104B25 40 BT40 - EMH 3/8 - 4.00 0.375 1.000 - 4.000 1.417 0.630 - UNF3/8-24 5/16L 1
AH106B25 BT40 - EMH 1/2 - 4.00 0.500 1.250 - 4.000 1.693 0.787 - UNF7/16-20 3/8L 1
AH108B25 BT40 - EMH 5/8 - 4.00 0.625 1.500 - 4.000 3.600 0.881 - UNF1/2-20 1/2L 1
AH110B25 BT40 - EMH 3/4 - 4.00 0.750 1.750 - 4.000 3.900 0.909 - UNF5/8-18 1/2L 1
AH114B25 BT40 - EMH 1 - 5.00 1.000 2.000 - 5.000 4.400 0.831 0.902 UNF3/4-16 1/2L 2
AH117B25 BT40 - EMH 1 1/4 - 5.00 1.250 2.500 2.461 5.000 4.000 0.831 0.902 UNF3/4-16 11/16L 2
AH121B25 BT40 - EMH 1 1/2 - 6.00 1.500 2.500 2.461 6.000 3.978 0.881 1.063 UNF3/4-16 1/2L 2
