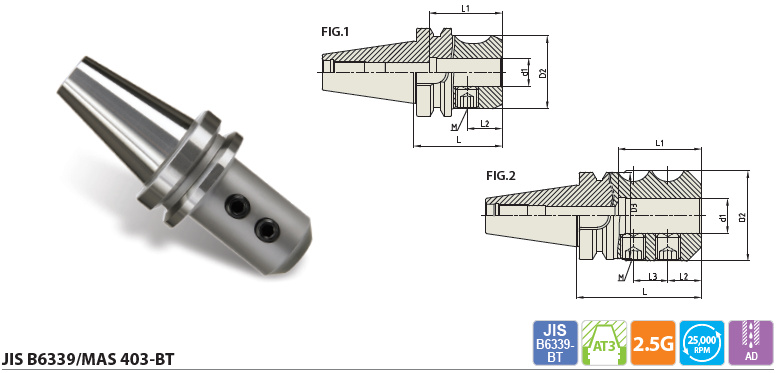

HIGH BALANCED END MILL HOLDER - STANDARD - BT - INCH

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 L3 M FIG.
AH000B25 40 BT40 - EMH 1/8 - 2.50 0.125 0.690 - 2.500 0.591 0.295 - UNC#8-32 1/4L 1
AH001B25 BT40 - EMH 3/16 - 2.50 0.187 0.690 - 2.500 0.787 0.441 - UNC#10-32 1/4L 1
AH002B25 BT40 - EMH 1/4 - 2.50 0.250 0.780 - 2.500 1.299 0.598 - UNF1/4-28 1/4L 1
AH003B25 BT40 - EMH 5/16 - 2.50 0.312 0.880 - 2.500 1.358 0.630 - UNF5/16-24 1/4L 1
AH004B25 BT40 - EMH 3/8 - 2.50 0.375 1.000 - 2.500 1.417 0.630 - UNF3/8-24 5/16L 1
AH005B25 BT40 - EMH 7/16 - 2.50 0.437 1.130 - 2.500 1.417 0.630 - UNF3/8-24 25/64L 1
AH006B25 BT40 - EMH 1/2 - 2.50 0.500 1.250 - 2.500 1.693 0.787 - UNF7/16-20 3/8L 1
AH008B25 BT40 - EMH 5/8 - 2.50 0.625 1.500 - 2.500 3.600 0.881 - UNF1/2-20 1/2L 1
AH010B25 BT40 - EMH 3/4 - 2.50 0.750 1.750 - 2.500 3.900 0.909 - UNF5/8-18 1/2L 1
AH012B25 BT40 - EMH 7/8 - 3.50 0.875 1.880 - 3.500 4.200 0.650 0.811 UNF5/8-18 1/2L 2
AH014B25 BT40 - EMH 1 - 3.75 1.000 2.000 - 3.750 4.400 0.831 0.902 UNF3/4-16 1/2L 2
AH017B25 BT40 - EMH 1 1/4 - 3.75 1.250 2.500 2.461 3.750 4.000 0.831 0.902 UNF3/4-16 11/16L 2
AH021B25 BT40 - EMH 1 1/2 - 4.25 1.500 2.500 2.461 4.250 3.978 0.881 1.063 UNF3/4-16 1/2L 2
