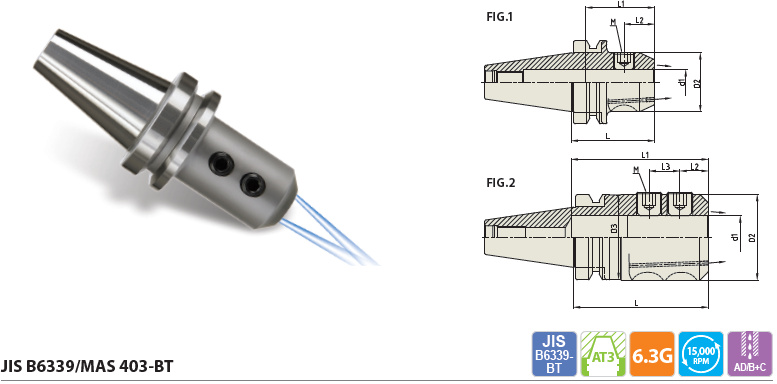

END MILL HOLDER (Coolant Channel) - BT - INCH

EDP No. TAPER No. MODEL No. d1 D2 D3 L L1 L2 L3 M FIG.
AH002C 40 BT40 AD/B - EMH 1/4C - 1.97 0.250 0.780 - 1.969 1.299 0.598 - UNF1/4-28 1/4L 1
AH003C BT40 AD/B - EMH 5/16C - 1.97 0.313 0.880 - 1.969 1.358 0.630 - UNF5/16-24 1/4L 1
AH004C BT40 AD/B - EMH 3/8C - 2.48 0.375 1.000 - 2.480 1.417 0.630 - UNF3/8-24 5/16L 1
AH006C BT40 AD/B - EMH 1/2C - 2.48 0.500 1.250 - 2.480 1.693 0.787 - UNF7/16-20 3/8L 1
AH008C BT40 AD/B - EMH 5/8C - 2.48 0.625 1.500 - 2.480 3.600 0.882 - UNF1/2-20 1/2L 1
AH010C BT40 AD/B - EMH 3/4C - 2.48 0.750 1.750 - 2.480 3.900 0.909 - UNF5/8-18 1/2L 1
AH012C BT40 AD/B - EMH 1C - 3.54 1.000 2.000 - 3.543 4.400 0.831 0.902 UNF3/4-16 1/2L 2
AH014C BT40 AD/B - EMH 1 1/4C - 3.94 1.250 2.500 2.461 3.937 4.000 0.831 0.902 UNF3/4-16 11/16L 2
